wall mounted jib crane supplier

Short Description:

Wall mounted Jib cranes for sale is a special type of lifting device, and it generally consists of a cantilever, rotary device and electric chain hoist. Swing arm jib crane is often fixed on the wall of certain factory or workshop, and the cantilever rotates around the column to realize round movement, which has large lifting span, large lifting capacity and high working efficiency.Cantilever fixed to the wall or cement column, can according to user requirements for rotary. Rotary body is divided into manual rotation and motor rotation.


  • The capacity: 0.25-16t
  • Lifting height: 2-10m
  • Slewing speed: 0.5-10r/min
  • Product Detail

    Product Tags

    Description

    banner(1)

    Wall mounted Jib cranes for sale is a special type of lifting device, and it generally consists of a cantilever, rotary device and electric chain hoist. Swing arm jib crane is often fixed on the wall of certain factory or workshop, and the cantilever rotates around the column to realize round movement, which has large lifting span, large lifting capacity and high working efficiency.Cantilever fixed to the wall or cement column, can according to user requirements for rotary. Rotary body is divided into manual rotation and motor rotation.

    Wall mounted jib cranes often apply to light working class, and the column is fixed on a concrete foundation with anchor bolts, which ensures the safety of the lifting work and avoid unnecessary accidents. The hoist of free standing jib cranes have double lifting speed to meet different lifting requirements. The whole lifting operation can be achieved with ground control, and it is no need to hire any operators in the working process of 12 ton jib crane.

    Wall mounted jib crane has the advantages of novel structure, reasonable, simple, convenient operation, flexible rotation, light weight and flexible load movement, is energy saving and efficient material handling equipment.

    HYCrane fixed jib crane has small impact, accurate positioning, small investment and high resource utilization rate. The running of hoist can be adjusted by manual or automatic frequency control, which has stable operation, low working noises and small swing angles.

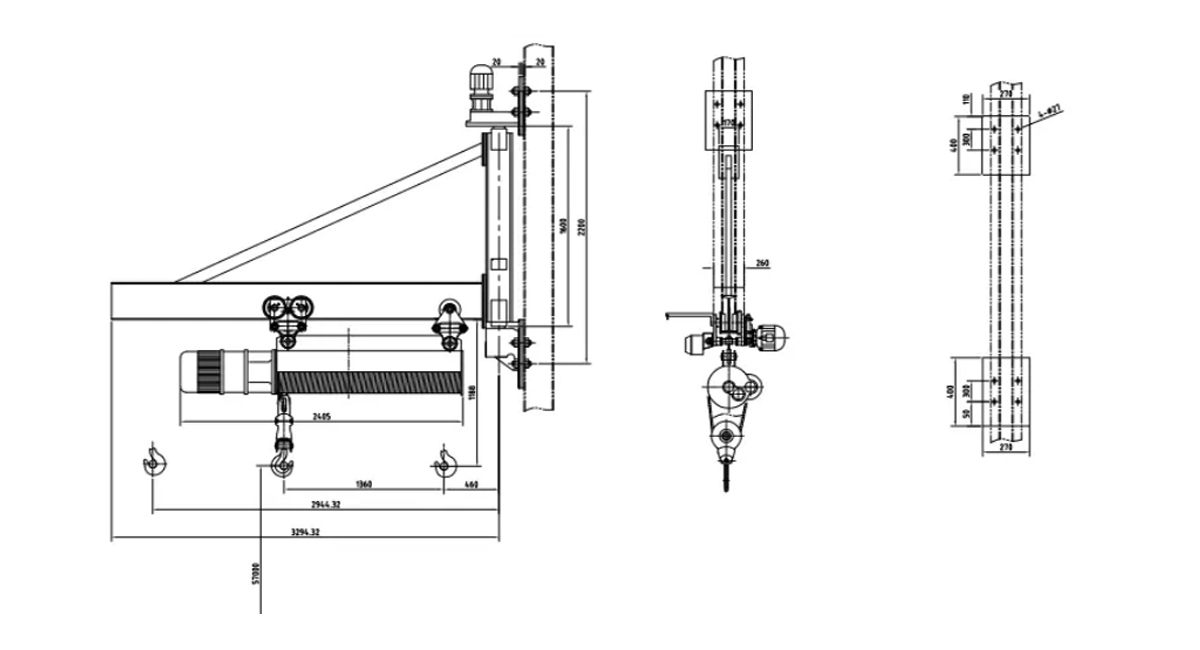

    Product Drawing

    图纸(4)

    Technical Parameters

    Type
    Capacity(t)
    Rotation angle(℃)
    L(mm)
    R1(mm)
    R2(mm)
    BXD 0.25
    0.25
    180
    4300
    400
    4000
    BXD 0.5
    0.5
    180
    4350
    450
    4000
    BXD 1
    1
    180
    4400
    600
    4000
    BXD 2
    2
    180
    4400
    600
    4000
    BXD 3
    3
    180
    4500
    650
    4000
    BXD 5
    5
    180
    4600
    700
    4000

    Why Choose Us

    1

    Complete
    Models



    2

    Adequate
    Nventory



    3

    Prompt
    Delivery

    4

    Support
    Customization

    5

    After-sales
    Consultation

    6

    Attentive
    Service

    I beam jib crane

    Name: I-Beam Wall-mounted Jib Crane
    Brand: HY
    Original: China
    Steel structure,tough and strong, wear-resistant and practical. The Max. Capacity can up to 5t, and max. span is 7-8m. The degree angle can up to 180.

    Name: KBK Wall-mounted Jib Crane
    Brand: HY
    Original: China
    It is KBK main beam, the max. capacity can up to 2000kg, the max. span is 7m, according to customer requirements , we can use European Electric chain hoist: HY Brand.

    KBK jib crane
    wall mounted arm jib crane

    Name: Wall-mounted Arm Jib Crane
    Brand: HY
    Original: China
    Indoor Factory or Warehouse KBK and I-Beam arm slewing jib crane. The span is 2-7m , and the max. capacity can up to 2-5 ton. It have light weight design, the hoist trolley can move by motor driver or by hand.

    Name: Wall-mounted Jib Crane
    Brand: HY
    Original: China
    It is heavy duty european beam I-beam wall-mounted jib crane. The max. capacity is 5T, and max. span is 7m, 180° degree angle , can be used in different environment.

    wall mounted jib crane

    Packing&Shipping

    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    1
    2
    3
    4

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
