Truss girder gantry crane for sale
Description

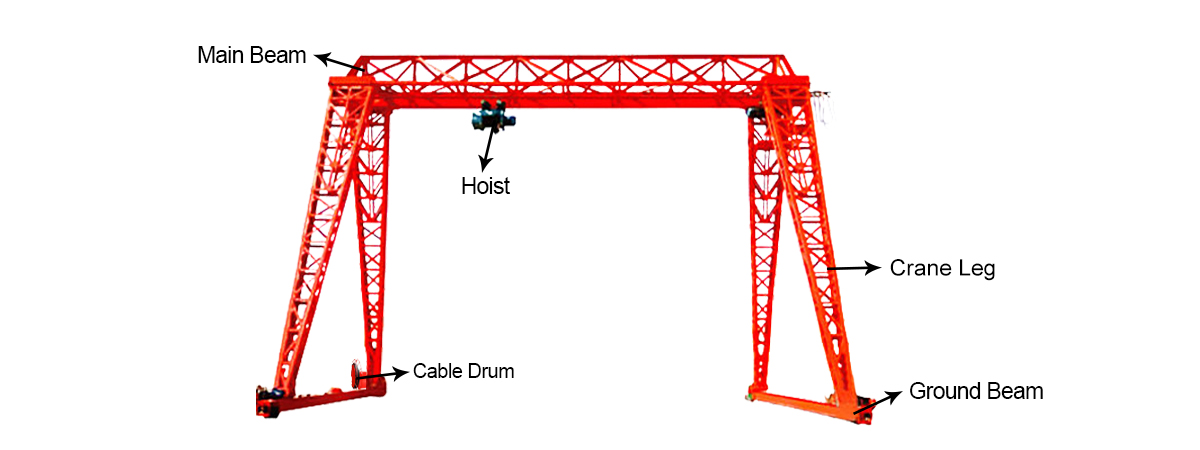

Truss type single girder gantry crane is consisted with gantry frame, main truss girder, legs, slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place.
Truss type single girder gantry crane is used together with CD MD model electric hoist. It is a track travelling small and medium-sized crane. Its proper lifting weight is 3.2 to 32 tons. proper span is 12 to 30 meters its proper working temperature is -20℃to 40℃.
Truss gantry crane para:
1. Lifting capacity is 3.2ton to 32ton;
2. Span is 12-30m;
3. Lifting height is 9m;
4. Working duty is A5;
5. Working temperature is -20°C to + 50°C.
Truss Gantry Crane application:
1. material stocks area
2. cement plant
3. granite industry
4. engineering industry
5. construction industry
6. shipping yards
7. road sides
8. mines plant
9. steel plant
10. concrete girder yard, etc

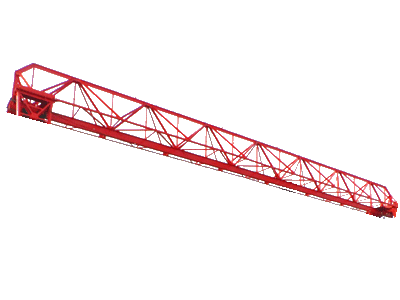

Main Beam
1.With strong box type andstandard camber
2.There will have reinforcementplate inside themain girder

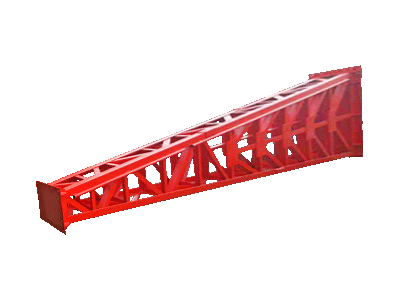

Crane Leg
1.Supporting effect
2.Ensure safety and stability
3.lmprove the lifting characteristics

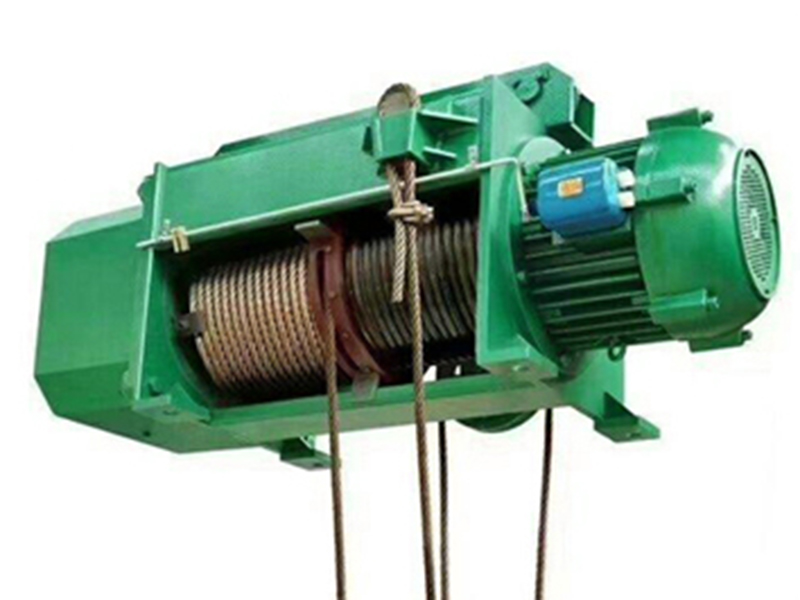

Hoist
1.Pendent & remote control
2.Capacity:3.2-32t
3.Height: max 100m

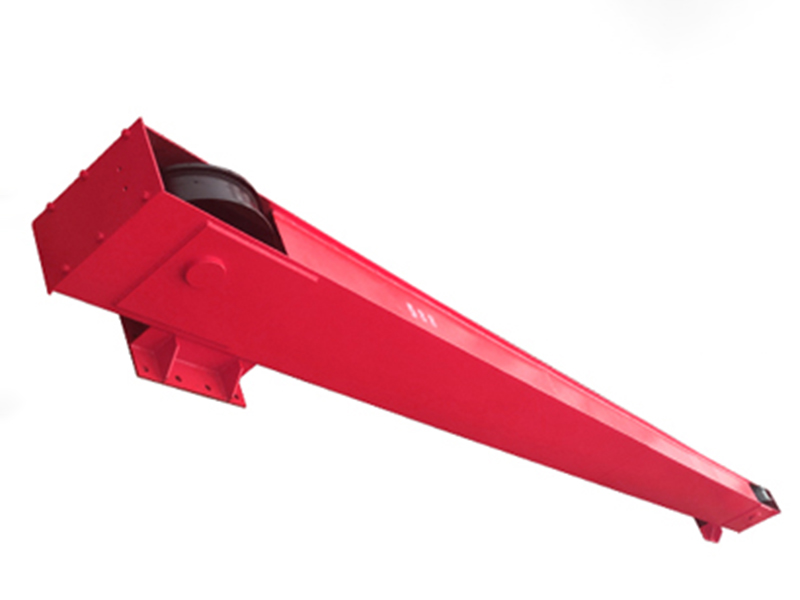

Ground Beam
1.Supporting effect
2.Ensure safety and stability
3.Improve the lifting characteristics

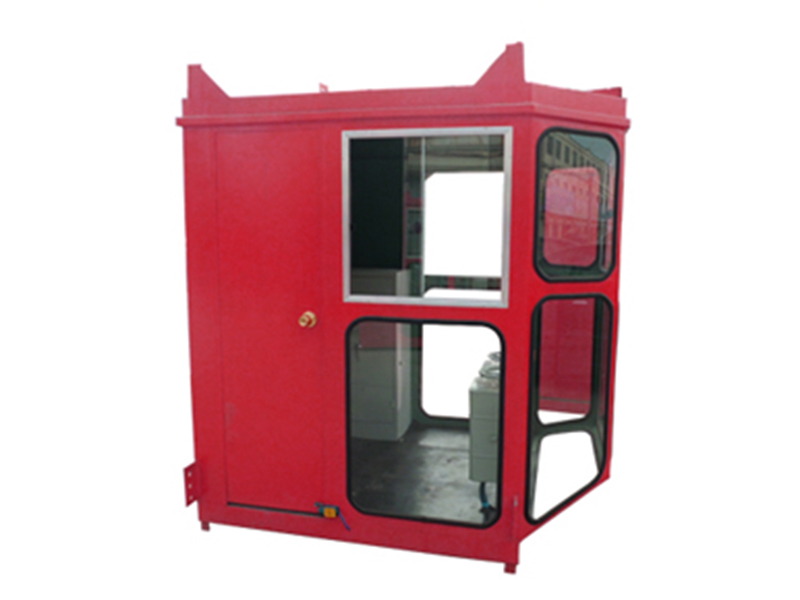

Crane Cabin
1.Close and open type.
2.Air-conditioning provided.
3.Interlocked circuit breakerprovided.

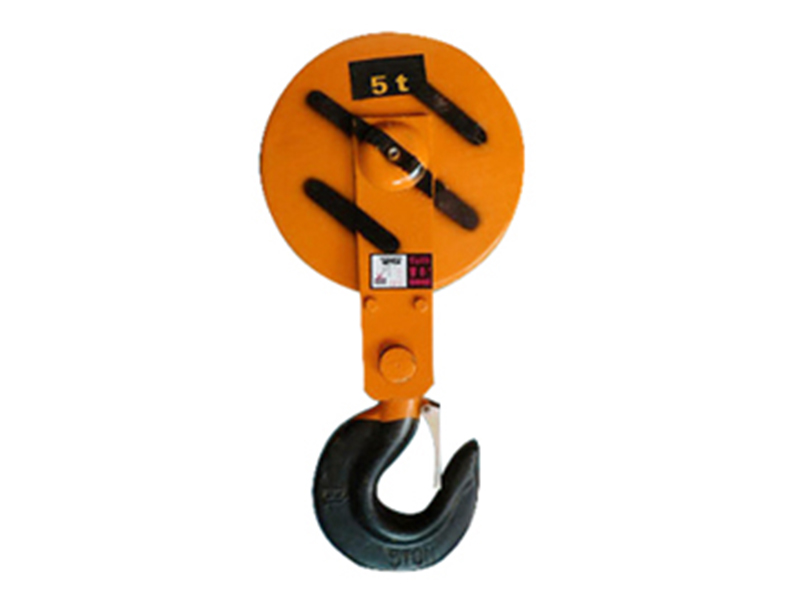

Crane Hook
1.Pulley Diameter:125/0160/0209/O304
2.Material:Hook 35CrMo
3.Tonnage:3.2-32t

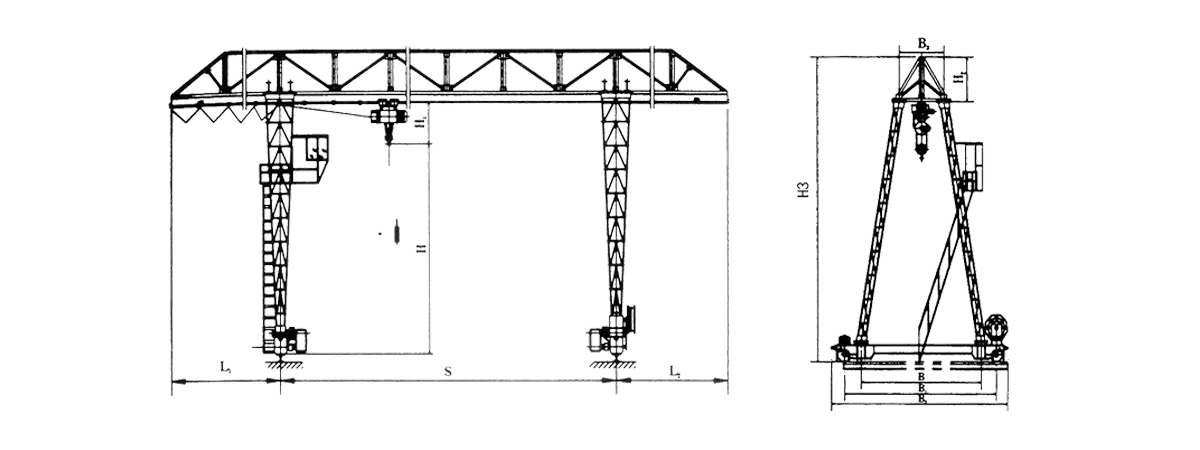

Technical Parameters
Technical Parameters
| Item | Unit | Result |
| Lifting capacity | ton | 3.2-32 |
| Lifting height | m | 6 9 |
| Span | m | 12-30m |
| Working environment temperature | °C | -20~40 |
| Travelling speed | m/min | 20 |
| lifting speed | m/min | 8 0.8/8 7 0.7/7 3.5 3 |
| travelling speed | m/min | 20 |
| working system | A5 | |
| power source | three-phase 380V 50HZ |
