Top Suppliers Construction Bridge Girder Erection Machine Girder Launching Crane

Short Description:


  • The capacity: 60-200ton
  • The span: 20-50m
  • Control Mode: Pendant, Remote Control and Cabin Control.
  • Product Detail

    Product Tags

    It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth for Top Suppliers Construction Bridge Girder Erection Machine Girder Launching Crane, We’ve ISO 9001 Certification and qualified this product or service .over 16 years experiences in manufacturing and designing, so our merchandise featured with ideal good quality and aggressive selling price. Welcome cooperation with us!
    It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth for China Beam Launcher and Girder Launching Crane, With a fully integrated operation system, our company has won a good fame for our high quality goods, reasonable prices and good services. Meanwhile, we have established a strict quality management system conducted in material incoming, processing and delivery. Abiding by the principle of “Credit first and customer supremacy”, we sincerely welcome clients from home and abroad to cooperate with us and advance together to create a brilliant future.

    Description

    launching-gantry

    Bridge Girder Erecting Launcher Crane applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.
    Bridge Girder Erecting Launcher Crane mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam erection, with high operating efficiency.
    Bridge Girder Erecting Launcher Crane is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is “C” shape column with rotary and foldabletechnology. The “C” shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.

    Grouped Equipment

    launching-gantry2

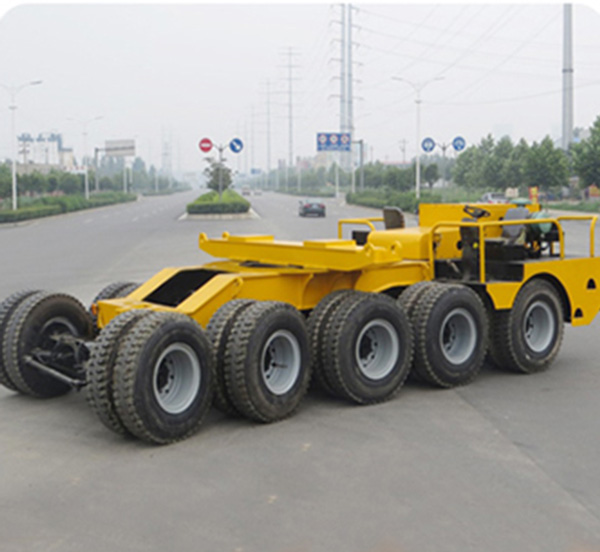

    Girder Transpotation Equipment

    launching-gantry3

    Launcher Gantry Crane

    launching-gantry4

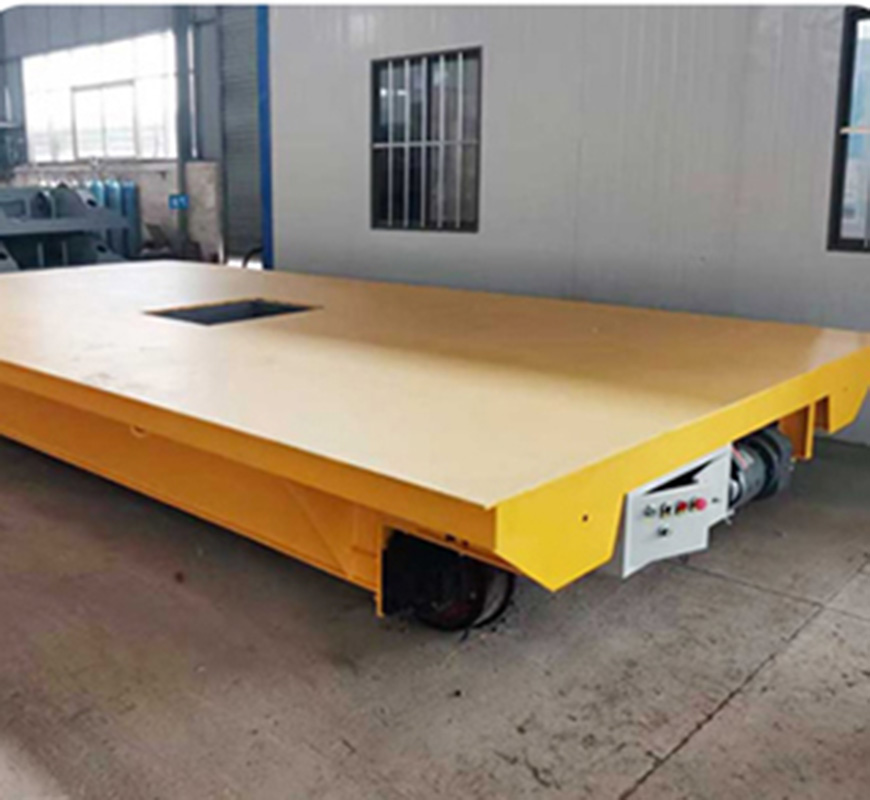

    Kpx Series Flat Trolley

    Product Details

    launching-gantry6
    launching-gantry7

    Country Cases

    ico_p1

    Philippines

    HY Crane designed one 120 ton, 55 meters spanbridge launcher in the Philippines, 2020.

    ico_p2

    Indonesia

    In 2018, we provided one 180 ton capacity, 40meters span bridge launcher for lndonesia client.

    ico_p3

    Bangladesh

    This project was a 180 ton, 53 meters spanbeam launcher in Bangladesh, 2021.

    ico_p4

    Algeria

    Applied in mountain road,100 ton, 40 meters beamlauncher in Algeria, 2022.

    Technical Parameters

    MCJH50/200 MCJH40/160 MCJH40/160 MCJH35/100 MCJH30/100
    Lifting capacity 200t 160t 120t 100t 100t
    applicable span ≤55m ≤50m ≤40m ≤35m ≤30m
    applicable skew bridge angle 0-450 0-450 0-450 0-450 0-450
    trolley lifting speed 0.8m/min 0.8m/min 0.8m/min 1.27m/min 0.8m/min
    rolley longitudinal moving speed 4.25m/min 4.25m/min 4.25m/min 4.25m/min 4.25m/min
    cart longitudinal moving speed 4.25m/min 4.25m/min 4.25m/min 4.25m/min 4.25m/min
    cart transverse moving speed 2.45m/min 2.45m/min 2.45m/min 2.45m/min 2.45m/min
    transportation capacity of bridge transport vehicle 100t X2 80t X2 60t X2 50t X2 50t X2
    heavy load speed of bridge transport vehicle 8.5m/min 8.5m/min 8.5m/min 8.5m/min 8.5m/min
    bridge transport vehicle return speed 17m/min 17m/min 17m/min 17m/min 17m/min
