Stable single girder overhead cranes with electrical hoist

Short Description:

Single girder bridge cranes have unparalleled advantages in the industrial field. Its cost-effectiveness, compact design, ease of maintenance, flexibility, adaptability and safety features make it a reliable and efficient choice for your material handling needs. Employing this crane will undoubtedly optimize industrial operations, increasing productivity and overall performance.

  • Lifting capacity: 0.25-20ton
  • Span length: 7.5-32mtrs
  • Lifting height: 6-30mtrs
  • Product Detail

    Product Tags

    Description

    single girder ovrehead crane banner

    Single girder overhead cranes are versatile and essential pieces of equipment used in various industries for efficient and reliable material handling.The crane features a single-girder design that spans the workspace, making it easy to lift and transfer heavy loads.
    In industry, single girder overhead cranes find their use in a variety of applications. It is used to lift and move materials, components and finished products from manufacturing plants to warehouses. Its flexibility makes it suitable for various industries such as automotive, construction, logistics, etc.
    The difference between single girder bridge crane and other lifting equipment lies in its unique advantages. First, it offers cost-effectiveness by offering higher load carrying capacity at a lower price compared to double girder cranes. This makes it ideal for small to medium lifting requirements.
    Second, its compact design ensures maximum utilization of the available workspace. By employing a single beam, it takes up less space, allowing for better flow and organization within the facility.
    Third, single girder bridge cranes are easier to maintain. Compared with double-girder cranes, fewer parts make inspection, repair and maintenance easier. This reduces downtime and increases productivity in industrial operations. Furthermore, these cranes are known for their flexibility and adaptability. They can be customized to meet specific lifting requirements and can be easily integrated with other systems such as automation and wireless control. This can be seamlessly integrated into existing processes and improves operational efficiency.
    Furthermore, safety remains the top priority for single girder overhead traveling cranes. With advanced safety features such as overload protection, emergency stop button and anti-collision system, it ensures the safety of the operator and the material being lifted.

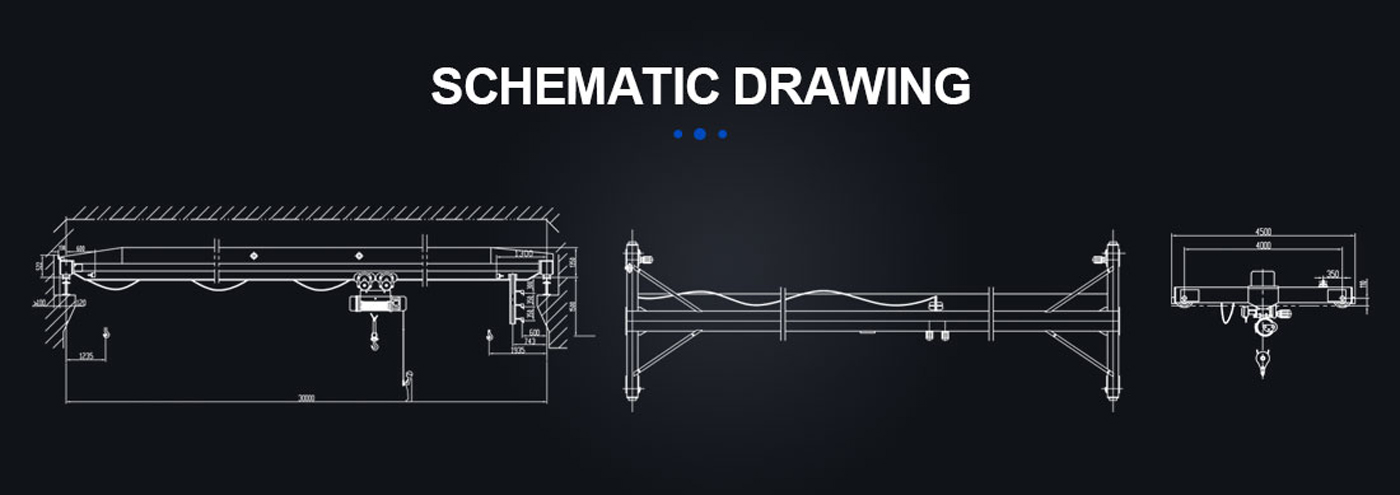

    Schematic Drawing

    single girder overhead crane schematic drawing

    Technical Parameters

    Parameters of Single Girder Overhead Crane
    Item Unit Result
    Lifting capacity ton 1-30ton
    Working grade A3-A5
    Span m 7.5-31.5m
    Working environment temperature °C -25~40
    working speed m/min 20-75
    lifting speed m/min 8/0.8(7/0.7)   3.5(3.5/0.35)    8(7)
    lifting height H(m) 6  9  12  18  24  30
    travelling speed m/min 20      30
    power source three-phase 380V 50HZ

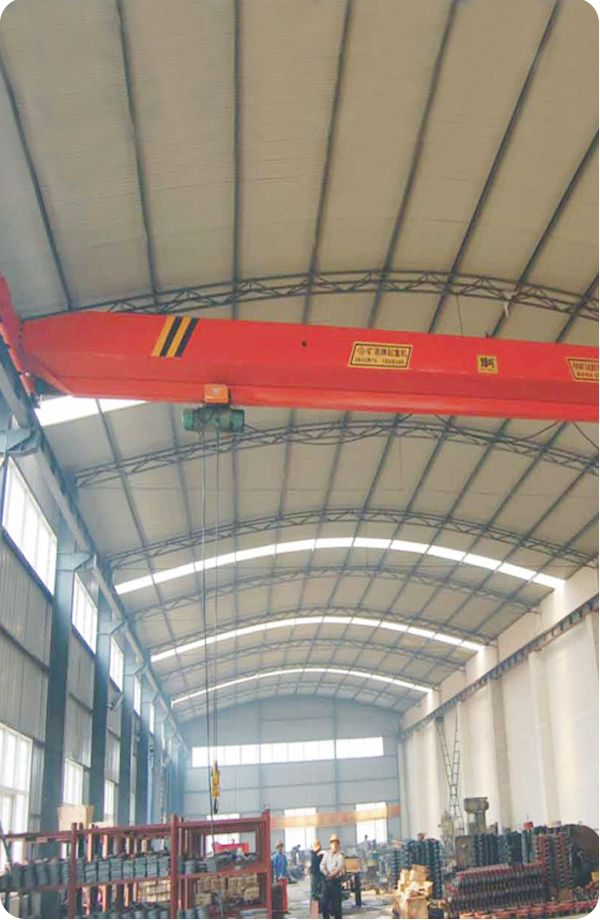

    single girder overhead crane 1

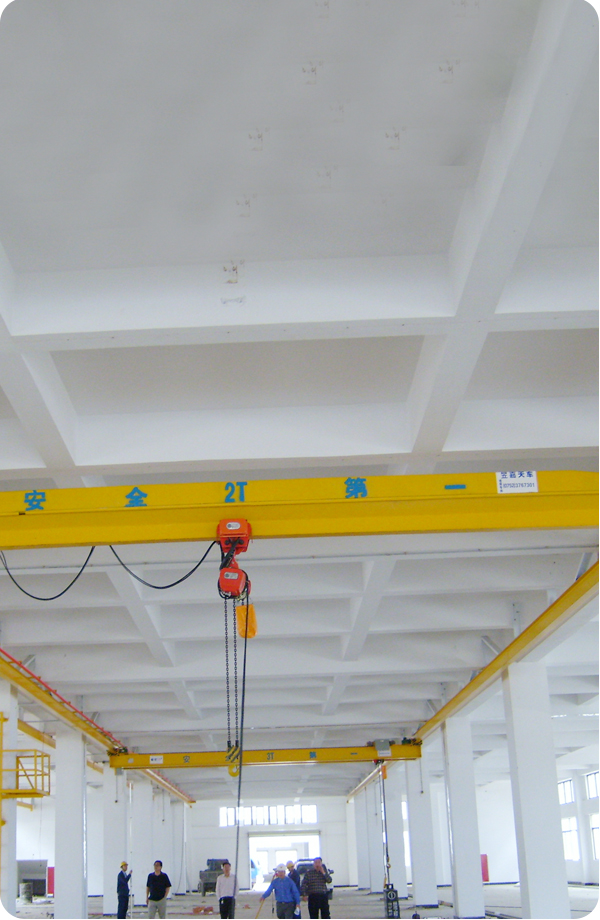

    single girder overhead crane 2

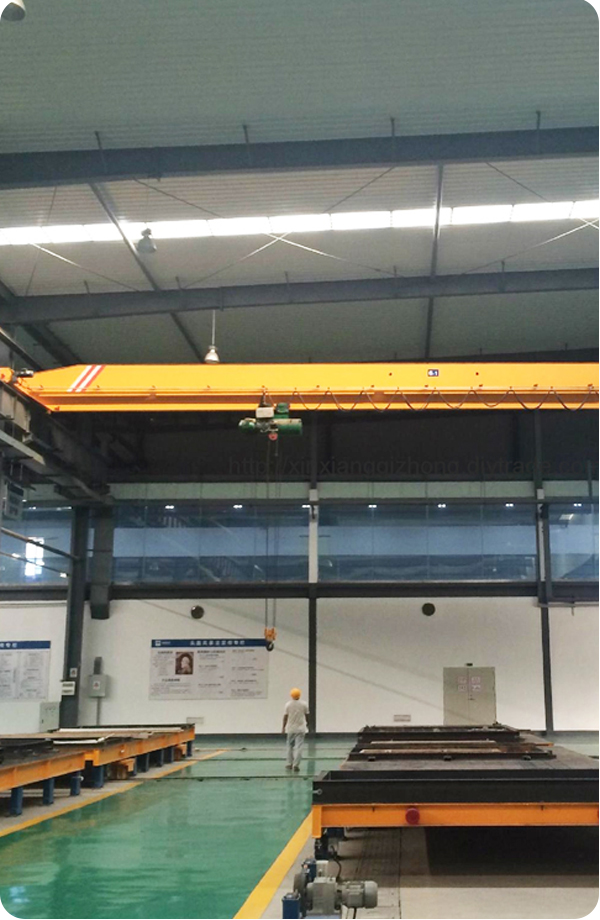

    single girder overhead crane 3

    SAFETY FEATURES

    Automatic rectify deviation control
    Weight overload protection device
    Top quality polyurethane buffer
    Phase protection
    Lifting limit switch

    Load capacity: 1t-30t we can supply 1 ton to 30 ton,more other capacity you can learn from other project
    Span: 7.5m-31.5m please contact us for more details
    Working Grade: A3-A5 also we can design as your request
    Temperature: -25℃ to 40℃ please contact us for more details

    Product Details

    Complete Models

    Complete
    Models

    Complete Models

    Adequate
    Nventory

    Complete Models

    Prompt
    Delivery

    Complete Models

    Support
    Customization

    Complete Models

    After-sales
    Consultation

    Complete Models

    Attentive
    Service

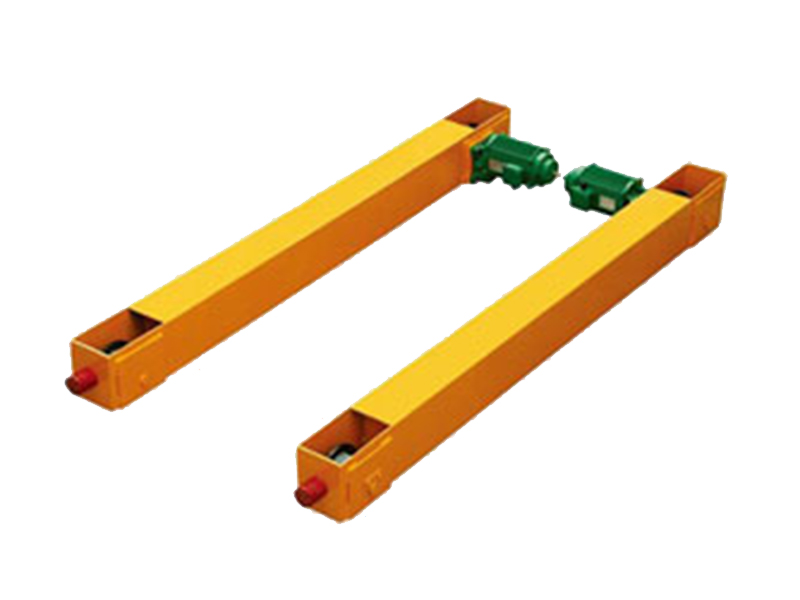

    End Beam

    End Beam

    T1.Uses rectangular tube manufacturing module 2.Buffer motor drive 3.With roller bearings and permanent iubncation

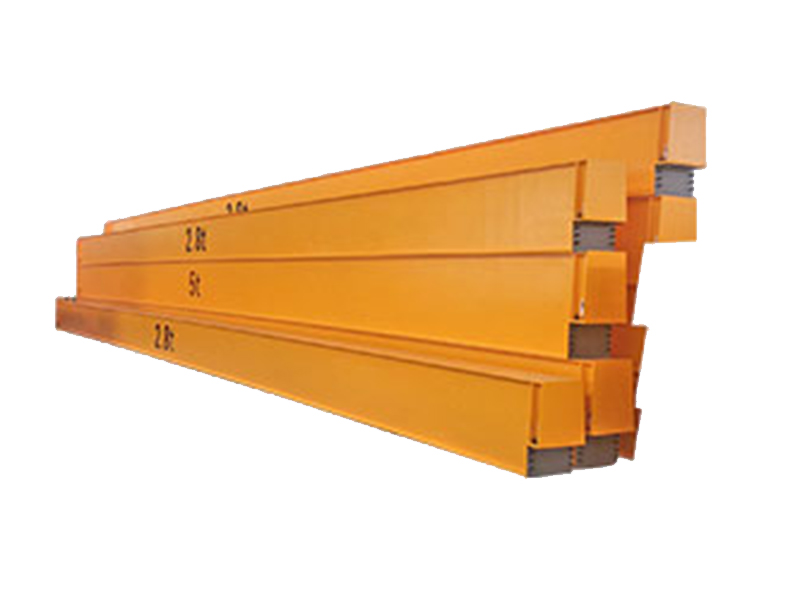

    Main Beam

    Main Beam

    1.With strong box type and standard camber 2. There will have reinforcement plate inside themain girder

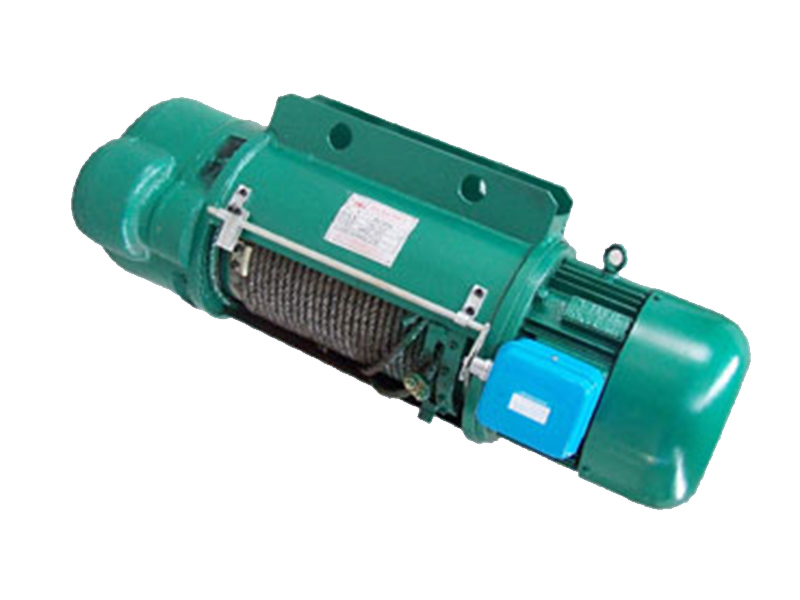

    Crane Hoist

    Crane Hoist

    1.Pendent & remote control 2.Capacity:3.2-32t 3.Height: max 100m

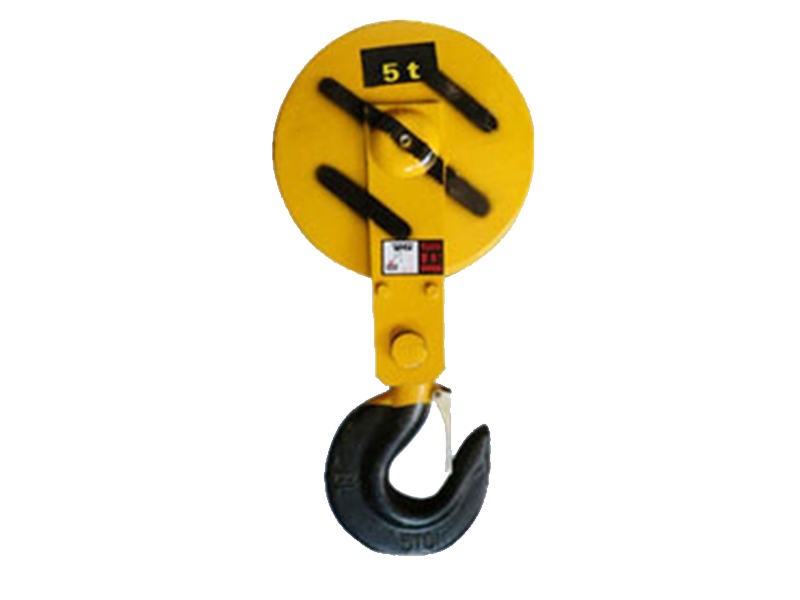

    Crane Hook

    Crane Hook

    1.Pulley Diameter:125/0160/0209/0304 2.Material:Hook 35CrMo 3.Tonnage:3.2-32t

    HYCrane VS Others

    Our Material

    Our Material

    1. The raw material procurement process is strict and has been inspected by quality inspectors.
    2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
    3. Strictly code into inventory.

    1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
    2. As shown in the picture, old equipment is often used for refurbishment.
    3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

    Other Brands

    Other Brands

    Our Motor

    Our Material

    1. Motor reducer and brake are three-in-one structure
    2. Low noise, stable operation and low maintenance cost.
    3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

    1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
    2. The price is low and the quality is very poor.

    Other Brands

    Other Brands

    Our Motor

    Our Wheels

    All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

    1. Do not use splash fire modulation, easy to rust.
    2. Poor bearing capacity and short service life.
    3. Low price.

    Other Brands

    Other Brands

    Our Motor

    Our Controller

    1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
    2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

    The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.

    Other Brands

    Other Brands

    Application

    IT IS USED IN MANY FIELDS

    Can satisfy the users' choice under different condition.
    Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.

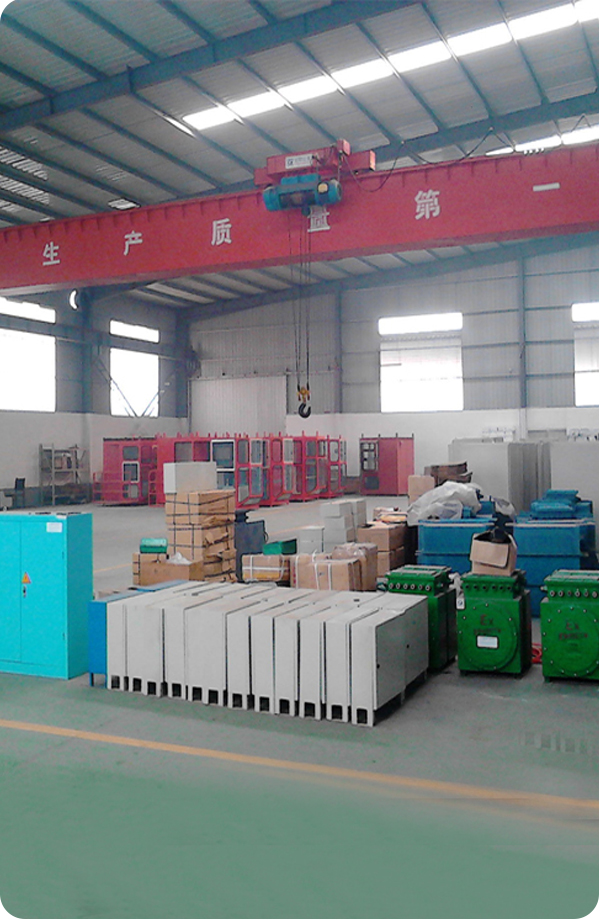

    Production Workshop

    Production Workshop

    Warehouse

    Warehouse

    Store Workshop

    Store Workshop

    Plastic Mold Workshop

    Plastic Mold Workshop

    Transport

    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    packing and delivery 01
    packing and delivery 02
    packing and delivery 03
    packing and delivery 04

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
