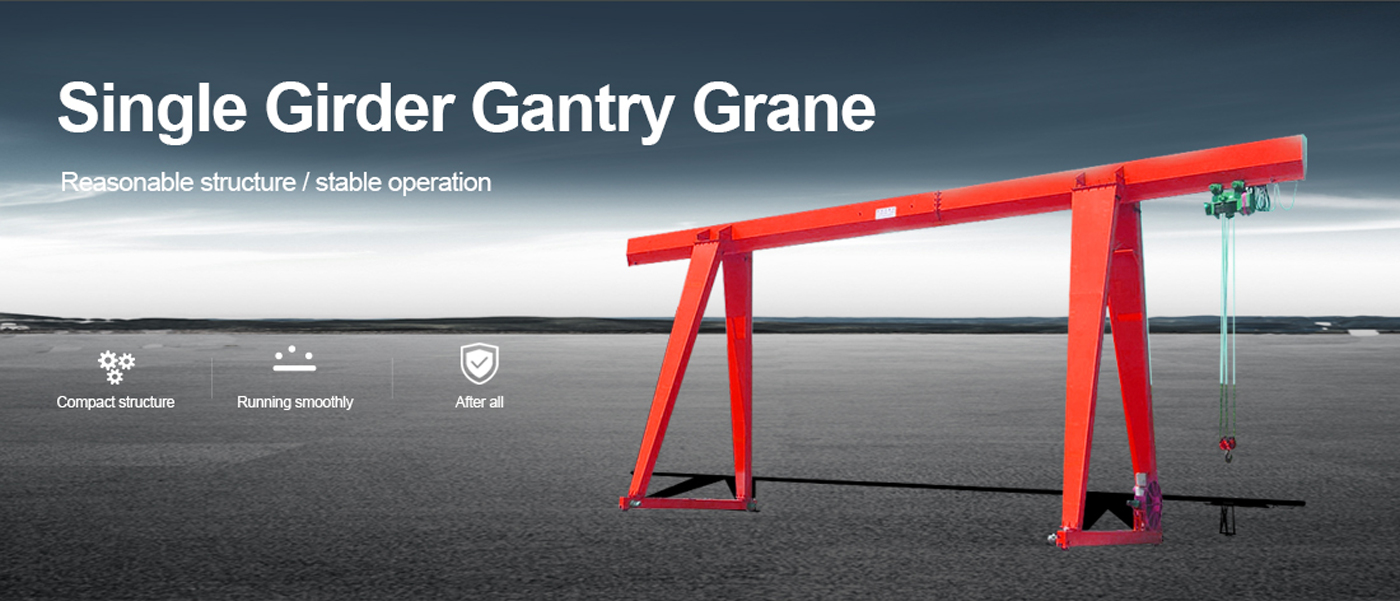

Stable and Reliable box type single beam gantry crane 8m with hoist

Short Description:

Single girder gantry cranes are valuable assets in various industries, offering versatility, mobility, and efficient material handling capabilities. Their unique structure allows for reliable and cost-effective operations, making them an essential tool in manufacturing, construction, shipping, and logistics industries.

Lifting capacity: 3.2-32ton

Span length: 12-30m

Working grade: A5

Send email to us

Product Detail

Product Tags

Description

ELectric single beam gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works, this kind of crane is composed of bridge, support legs, crane traveling organ, electric equipment, strong lifting winch, the frame adopts boxed-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable drum or conductor bus bar.

Safety feature:

Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!

Control method:

Pendant line with press button, radio remote control, operator cabin, or both

Design and construction rules:

All the standards which is required for the crane is the Chinese standard

Capacity			T	3	5	10	16	20
Span			m	12,16,20,24,30,35,40,50
Operational method				Pendant Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling			20	20	20	20	20
	Long travelling	Ground		20	20	20	20	20
	Long travelling	Cabin		20, 30,45	20, 30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground		ZDY21-4/0.8×2 ZDY21-4/1.5×2	YZY22-4/1.5×2 YZR132M2-6/3.7×2	YZR22-4/1.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
	Long travelling	Cabin		ZDR100-4/1.5×2 ZDR112-4/2.1×2	YZR112L1-4/2.1×2 YZR160M1-6/2.1×2	YZR112L1-4/2.1×2 YZR160M2	YZR160M2-6/8.5×2 YZR160L2-6/11×2	YZR160M2-6/8.5×2 YZR160L2-6/11×2
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height			m	6,9
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )

HYCrane VS Others

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Material

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

a
S

Other Brands

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

s
S

Other Brands

Our Controller

1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.

Other Brands

Fine Workmanship

01
Raw Material
——

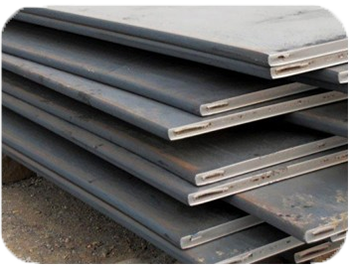

GB/T700 Q235B and Q355B
Carbon Strctural Steel, best quality steel plate from China Top-Class mills with Diestamps inlude heat treatment number and bathch number, it can be tracked.

02

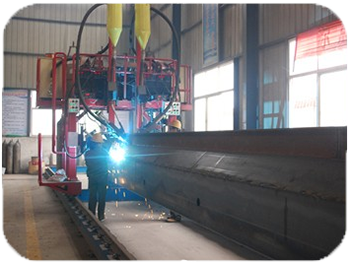

Welding
——

American welding Society, all important welds are carried out in accordance with welding procedures strictly.After welding, a certain amount of NDT control is carried out.

03

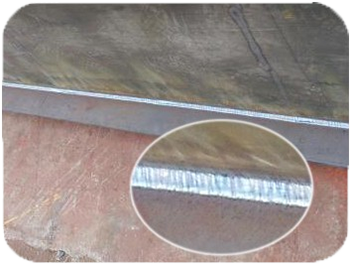

Welding Joint
——

The appearance is uniform.The joints between the weld passes are smooth.All off the welding slags and splashes are cleared out. There are no faults such as cracks,pores,bruises etc.

04

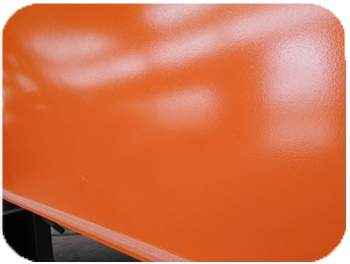

Painting
——

Before painting metal surfaces are shot peening sa required, two coats of pimer before assembly,two coats of synthetic enamel after testing. Painting adhesion is accorded to the class I of GB/T 9286.
