Space saving design wall mounted jib crane for storeroom
description
The wall mounted jib crane is a specialized lifting equipment widely used in industrial settings for material handling purposes. Its unique structure and features make it a versatile and efficient tool in various applications.
Firstly, the wall mounted jib crane is known for its space-saving design. As the name implies, it is fixed directly to the wall, allowing for maximum utilization of floor space. This makes it an ideal choice for working environments with limited space or crowded areas where traditional cranes cannot be installed. By being mounted on the wall, it offers a wide range of working area coverage while reducing interference with other equipment or operations..
Another important feature of the wall-mounted jib crane is its ease of maneuverability. The crane is typically equipped with a rotating arm that can swing horizontally, providing a flexible lifting range. This allows operators to move and position loads precisely, enhancing efficiency and reducing the risk of accidents. Moreover, the crane can be adjusted vertically to accommodate different lifting heights, making it suitable for diverse material handling requirements.
In contrast, the floor mounted jib crane, as another widely used lifting solution, has distinct differences from the wall mounted jib crane. Instead of being mounted on the wall, the freestanding-column jib crane relies on a self supporting structure, which typically consists of a vertical mast or column anchored to the ground.Compared to the wall-mounted jib crane, this model offers increased stability and load capacity. However, the floor mounted model requires a larger floor space for installation.
technical parameters
| parameters of wall mounted jib crane | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Type
|
Capacity(t)
|
Rotation angle(℃)
|
L(mm)
|
R1(mm)
|
R2(mm)
|
||||
|
BXD 0.25
|
0.25
|
180
|
4300
|
400
|
4000
|
||||
|
BXD 0.5
|
0.5
|
180
|
4350
|
450
|
4000
|
||||
|
BXD 1
|
1
|
180
|
4400
|
600
|
4000
|
||||
|
BXD 2
|
2
|
180
|
4400
|
600
|
4000
|
||||
|
BXD 3
|
3
|
180
|
4500
|
650
|
4000
|
||||
|
BXD 5
|
5
|
180
|
4600
|
700
|
4000
|
||||
product details

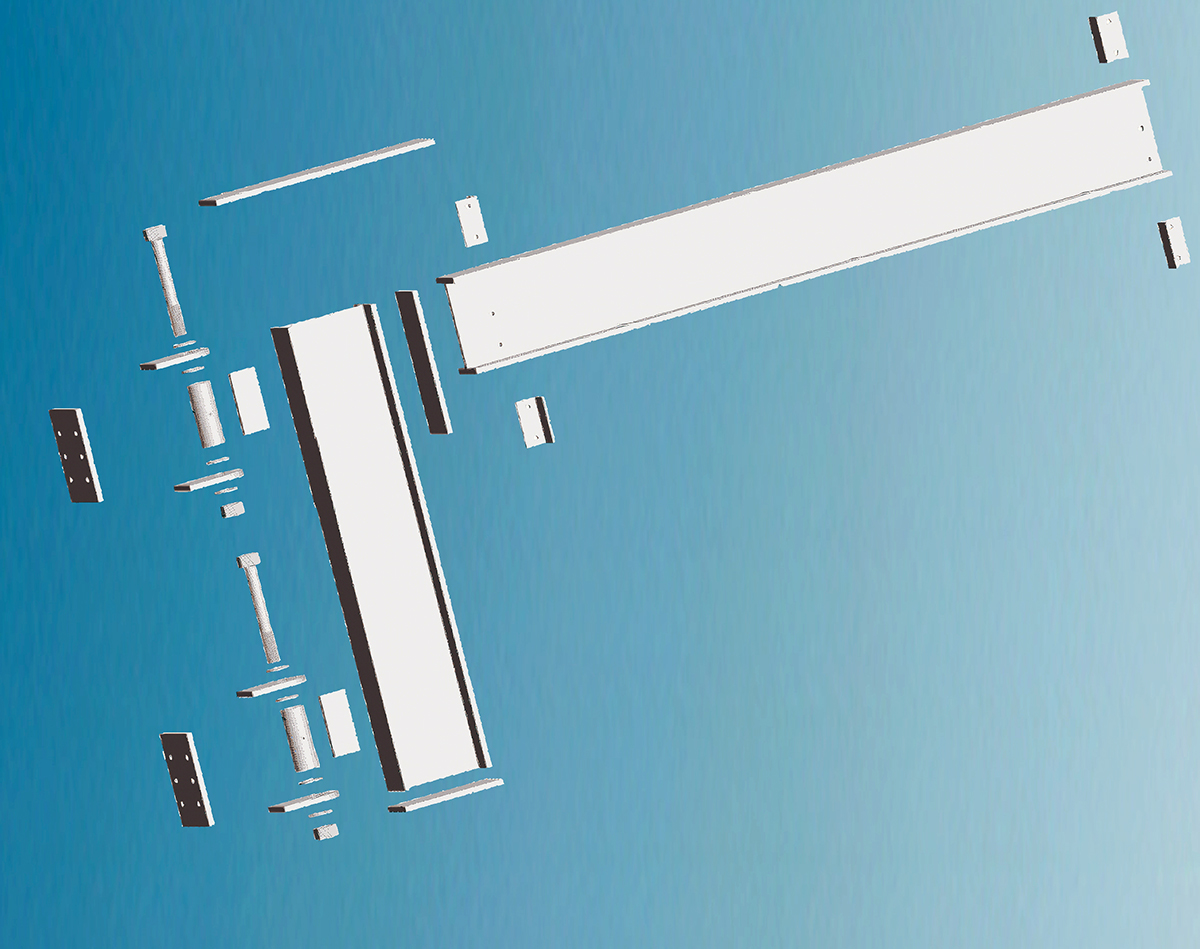

I beam wall mounted jib Crane
brand: HY
original:
china
steel structure,tough and strong, wear-resistant and practical. The Max. Capacity can up to 5t, and max. span is 7-8m. The degree angle can up to 180.
kbk wall mounted jib crane
brand: HY
original:
china
it is kbk main beam, the max capacity can up to 2000kg, the max span is 7m, according to customer requirements, we can use european electric hoist.
01
tracks
——
The tracks are mass-produced and standardized, with reasonable prices and guaranteed quality.
02
steel structure
——
steel tructure, tough and strongwear-resistant and practical.
03
quality electric hoist
——
quality electric hoist,strong and durable,chain is wear resistant,life span is up to 10 years.
04
appearance treatment
——
beautiful appearance, reasonable structure design.
05
cable safty
——
built-in cable for more safty.
06
motor
——
the motor adots a well known chinese brand with excellent performance and reliable quality.
HYCrane VS Others
Our Material
1. The raw material
procurement process is strict and
has been inspected by quality inspectors.
2. The materials used are all steel products from
major steel mills, and the quality is
guaranteed.
3. Strictly code into inventory.
1. Cut corners, originally used 8mm steel
plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often
used for refurbishment.
3. Procurement of non-standard steel from small
manufacturers, product quality is unstable.
Other Brands
Our Motor
1. Motor reducer and brake
are three-in-one
structure
2. Low noise, stable operation and low maintenance
cost.
3. The built-in anti-drop chain can prevent
the bolts from being loosened, and avoid the
harm to the human body caused by the accidental fall
of the motor.
1.Old-style motors: It is noisy, easy to wear, short
service life, and high maintenance cost.
2. The price is low and the quality is very poor.
Other Brands
Our Wheels
All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.
1. Do not use splash fire modulation, easy to
rust.
2. Poor bearing capacity and short service life.
3. Low price.
Other Brands
our controller
our inverters make the crane run more stable and safe, and make the maintenance of the more intelligent and easy.
the self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.
the control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
other brands
transport
- packing and delivery time
- we have a complete production security system and experienced workers to ensure timely or early delivery.
-
research and development
- professional power
-
brand
- strength of the factory.
-
production
- years of experience.
-
custom
- spot is enough.
-
asia
- 10-15days
-
middle east
- 15-25days
-
africa
- 30-40days
-
europe
- 30-40days
-
america
- 30-35days
By national station exporting standard plywood box,wooden palletor in 20ft & 40ft container. Or as per your demands.
