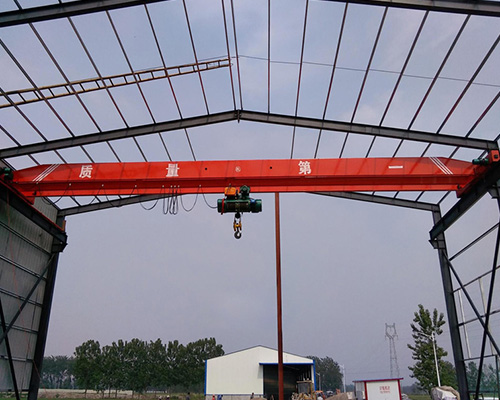

Single Girder Overhead Crane For Manufacturing Plant

Short Description:

We are a manufacturer specializing in single-girder bridge cranes. Our bridge cranes can meet your different needs. Contact us for details.

Lifting capacity: 5-50ton

Span length: 7.5-31.5m

Working grade: A3-A5

Send email to us

Product Detail

Product Tags

1. Overload protection: If the material is over the capacity, it will give a sharp warning for protection itself.

2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.

3. Control Method: Room control or remote control to avoid any injure to the operation staff

4. Main lifting motor: with thermal protection and currency protection.

5. Hooks with latch

6. Rubber buffers

7. Protective earthing

https://www.hyportalcrane.com/contact-us/

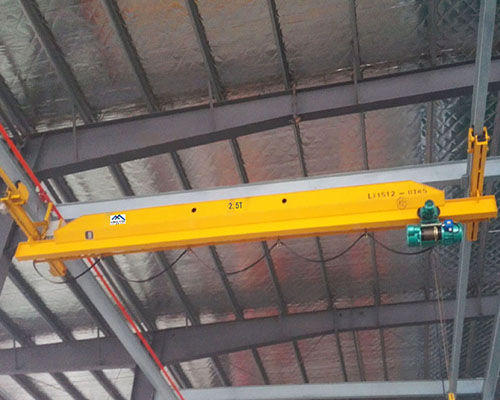

Item	LX Type Electric Single Beam Suspension Crane
Lifting capacity(ton)	1-10
Lifting height(m)	6/9/12/18
Span(m)	3-16m
Lifting speed(m/min)	8 8/0.8
Travelling speedm(m/min)	20/30
Working grade	A3-A5
Working environment temperature	-25~40
Power source	three-phase 380V 50HZ

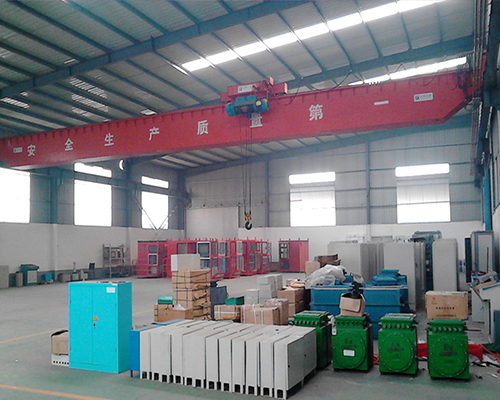

The LDP type electric single beam crane belongs to ultra-low clearance light and small cranes. The electric hoist design is located on one side of the main beam, increasing the service space of the hook, which can reduce the height and cost of the room. Due to its large wheelbase, smooth operation, compact structure, good rigidity, sensitive operation, low noise, beautiful appearance, safety and reliability, this machine is widely used in workshop buildings with working environment temperatures ranging from -25 ° C to+40 ° C, no flammable and explosive media, and low clearance height.

Capacity	3~10 ton
Working Duty	A3~A4
Lifting Heigh	6 m 9 m 12 m
Span	7.5~22.5m
Traveling Speed	20 m/min 30 m/min
Lifting Speed	8 (0.8/8) m/min 7(0.7/7)
Control Method	Pendent Line Control+Radio Remote Control
Max Wheel Load	20.1 kn~73.2 kn
Min. Wheel Load	5.39 kn~20.49 kn

Single Girder Overhead Crane is usually a straight single beam bridge crane，and is widely used for lifting goods in factories, warehouses, and material plants. It has a reasonable structure and high overall steel strength. The main beam of the bridge of single beam crane mostly adopts I-steel or the combined section of steel section and steel plate. It is usually used in conjunction with electric hoists as a lifting mechanism, which is used to lift goods in different occasions.

Lifting Capacity	ton	1	2	3	5	10	16	20	25
Span	S(m)	7.5~31.5							7.5~25.5
Lifting height	m	6~30				9~30
Lifting speed	m/min	8（0.8/8）				7（0.7/7）	3.5（0.35/3.5）	3.3（0.33/3.3）	3（0.3/3）
Trolley travelling speed	m/min	20(30)					18	14	16
Crane travelling speed	m/min	20(30)
Work class		A3~A4
Track type		P18	P18 P24	P24	P24	P24 P30	P30 P38	P38 P43

HYCrane VS Others

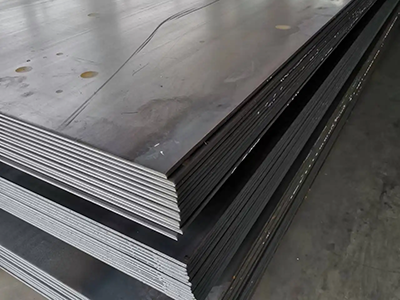

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

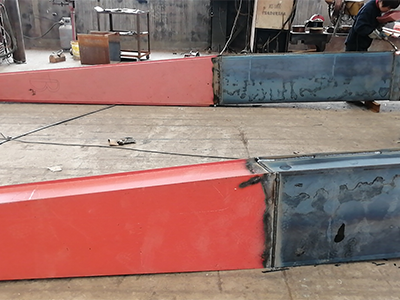

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Material

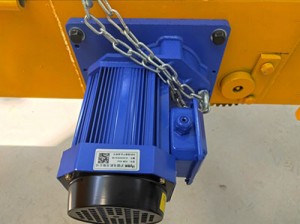

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

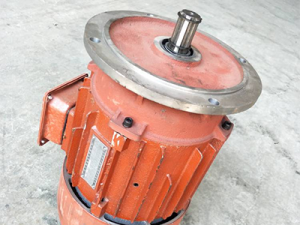

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

a
S

Other Brands

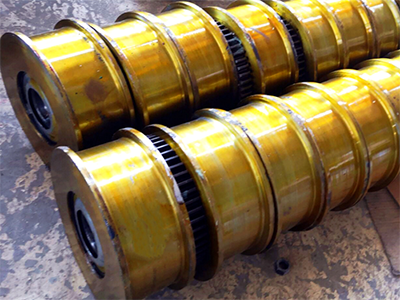

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

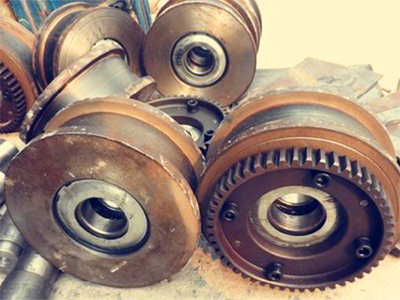

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

s
S

Other Brands

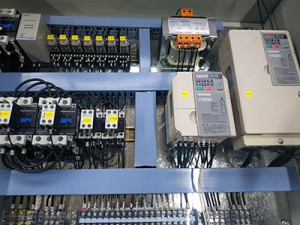

Our Controller

1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

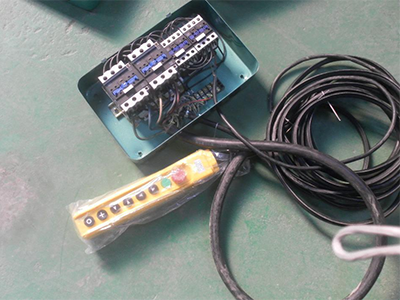

The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
