Robust heavy load capacity portal crane for harbor

Short Description:

Port cranes are engineering marvels in maritime logistics and are key pieces of equipment that are revolutionizing the way cargo is transported in ports. Portal cranes are designed to handle large loads, helping in efficient and timely transportation of goods. With their sturdy structures and advanced features, port cranes have become an indispensable tool in ports, providing unparalleled lifting capabilities and increasing overall productivity.

The capacity: 16-40t

Lifting speed: 50-60m/min

luffing speed: 45-50m

Send email to us

Product Detail

Product Tags

description

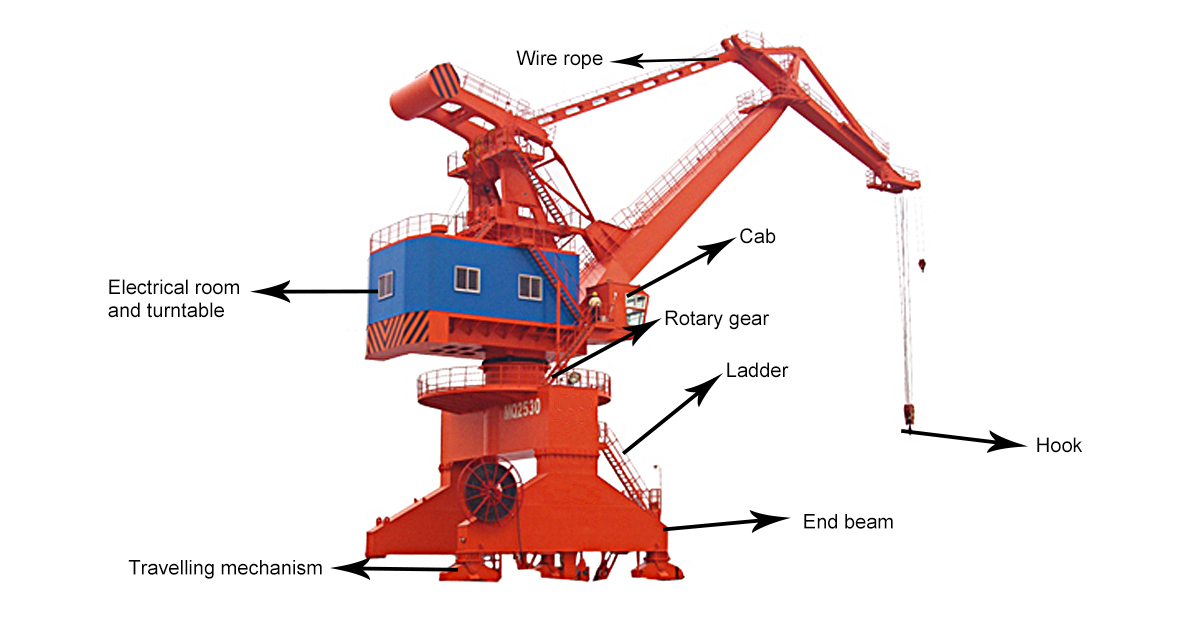

Port cranes are characterized by a tall structure consisting of a sturdy boom and various support components. The boom is usually made of high-quality steel and is telescopic and can be raised or lowered according to the requirements of cargo handling. It is equipped with a technologically advanced lifting mechanism that enables it to lift heavy objects smoothly. The crane also features a cab on top of the jib, giving the operator a strategic view of the entire loading area, ensuring precise and safe maneuverability.

In addition, port cranes offer excellent maneuverability thanks to their specialized rail-mounted or wheel-mounted bases. This enables it to cover large areas within the

port

, facilitating seamless loading and unloading operations at multiple cargo terminals. Additionally, port cranes are designed to withstand harsh weather conditions and heavy loads, ensuring reliability and longevity. Its ability to handle a wide range of cargo, from containers to bulk materials, makes it a vital asset to any modern port.

Port cranes play a vital role in the efficient operation of ports and contribute significantly to the global economy. It enables smooth and fast transfer of cargo, reduces turnaround time and increases the overall throughput of the port. Port cranes have huge lifting capacity and can handle huge loads, eliminating the need for multiple smaller cranes, saving time and resources. In addition, its advanced technology and precise controls ensure that fragile or sensitive cargo is handled with the utmost care, minimizing potential damage.

The irreplaceability of port cranes stems from their unique capabilities and characteristics. Its ability to handle unrivaled loads and cover vast areas of the port makes it an indispensable asset to maximize operational efficiency. Other alternatives, such as manual labor or small lifting equipment, simply cannot match the productivity and speed achieved by port cranes. In addition, its continuous innovation and integration of cutting-edge technologies ensure that it remains at the forefront of cargo handling and adapts to the ever-changing needs of global trade.

←about us

technical parameters

parameters of container rail mounted gantry crane
item	unit	data
capacity	t	16-40
working range	m	30-43
wheel dis	m	10.5-16
lifting speed	m/min	50-60
luffing speed	m/min	45-50
rotating speed	r/min	1-1.5
travelling speed	m/min	26
power source		as your demands
other		according to your specific usage, specific model and design will

product details

single beam portal crane

four link boom portal crane

floating dock crane

SAFETY FEATURES

Gate Switch
Overload Limiter
Stroke Limiter
Mooring Device
Anti-wind Device

Main Parameters
Load capacity:	20t-200t	(we can supply 20 ton to 200 ton,more other capacity you can learn from other project)
Span:	max 30m	(Standard we could supply span max to 30m, please contac our sales manager for more details)
Lift height:	6m-25m	(We can supply 6 m to 25 m,also we can design as your request )

Fine Workmanship

Low
Noise

Fine
Workmanship

Spot
Wholesale

Excellent
Material

Quality
Assurance

After-Sale
Service

01
Raw Material
——

GB/T700 Q235B and Q355B
Carbon Strctural Steel, best quality steel plate from China Top-Class mills with Diestamps inlude heat treatment number and bathch number, it can be tracked.

02
Welding
——

American welding Society, all important welds are carried out in accordance with welding procedures strictly.After welding, a certain amount of NDT control is carried out.

03
Welding Joint
——

The appearance is uniform.The joints between the weld passes are smooth.All off the welding slags and splashes are cleared out. There are no faults such as cracks,pores,bruises etc.

04
Painting
——

Before painting metal surfaces are shot peening sa required, two coats of pimer before assembly,two coats of synthetic enamel after testing. Painting adhesion is accorded to the class I of GB/T 9286.

HYCrane VS Others

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Motor

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

Other Brands

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

Other Brands

our controller

our inverters make the crane run more stable and safe, and make the maintenance of the more intelligent and easy.

the self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

the control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
