Promotion Price Rail Mounted Container Gantry Crane For Portal
Description
Our rail-mounted container gantry crane is
a revolutionary solution designed to optimize container handling
operations with maximum efficiency and reliability. This
state-of-the-art equipment has been engineered to meet the specific
needs of container ports and terminals. With their unparalleled
capabilities and cutting-edge technology, our rail container gantry
cranes are poised to revolutionize the industry.
Our rail-mounted container gantry cranes feature robust and durable
construction and are the ideal solution for container handling. It
is equipped with high-quality components that ensure excellent
performance and longevity even in the most demanding environments.
Its rail-mounted design provides enhanced mobility and versatility,
allowing efficient movement along rails without the need for
additional infrastructure.
The advantages of our railway container gantry cranes are many.
First, its precise and agile operation ensures fast and accurate
container loading and unloading, reducing overall loading and
unloading time and maximizing productivity. Secondly, the high
lifting capacity of the crane ensures seamless loading and unloading
of heavy containers, simplifying the entire work process.
Additionally, advanced control systems and advanced safety features
guarantee operator safety, minimize the risk of accidents and ensure
a safe working environment.
This remarkable device is suitable for a variety of usage scenarios.
Our rail container gantry cranes are ideally suited for container
terminals to efficiently stack and transport containers in an
organized and efficient manner, optimizing space utilization. It is
also an excellent choice for intermodal facilities, ensuring
seamless transfer of containers between different modes of
transport. Additionally, the crane's rail-mounted design allows it
to operate seamlessly in areas with limited space, making it a
versatile solution for both small and large jobs.
1. Double box beam with steel legs moving through the ground beam
as
crane travelling system
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrification and outfitting
7. Conductor power supply: Cable Reel or busbar.
8. Frequency conversion, double speed, single speed, and All
hoist
and crane movements are independent an d can be run
simultaneously
different design duo to meet crane applications
9. Whole layout provides good protection against special working
environment. Such as gas workshop
| The capacity | 30.5-320ton |
| The span | 35m |
| The working grade | A6 |
| The working temperature | -20℃ to 40℃ |
Technical Parameters
| MAIN PARAMETERS | ||
|---|---|---|
| Item | Unit | Result |
| Lifting capacity | ton | 30.5-320 |
| Lifting height | m | 15.4-18.2 |
| Span | m | 35 |
| Working environment temperature | °C | -20~40 |
| Hoisting Speed | m/min | 12-36 |
| Crane Speed | m/min | 45 |
| Trolley Speed | m/min | 60-70 |
| Working system | A6 | |
| Power source | three-Phase A C 50HZ 380V | |

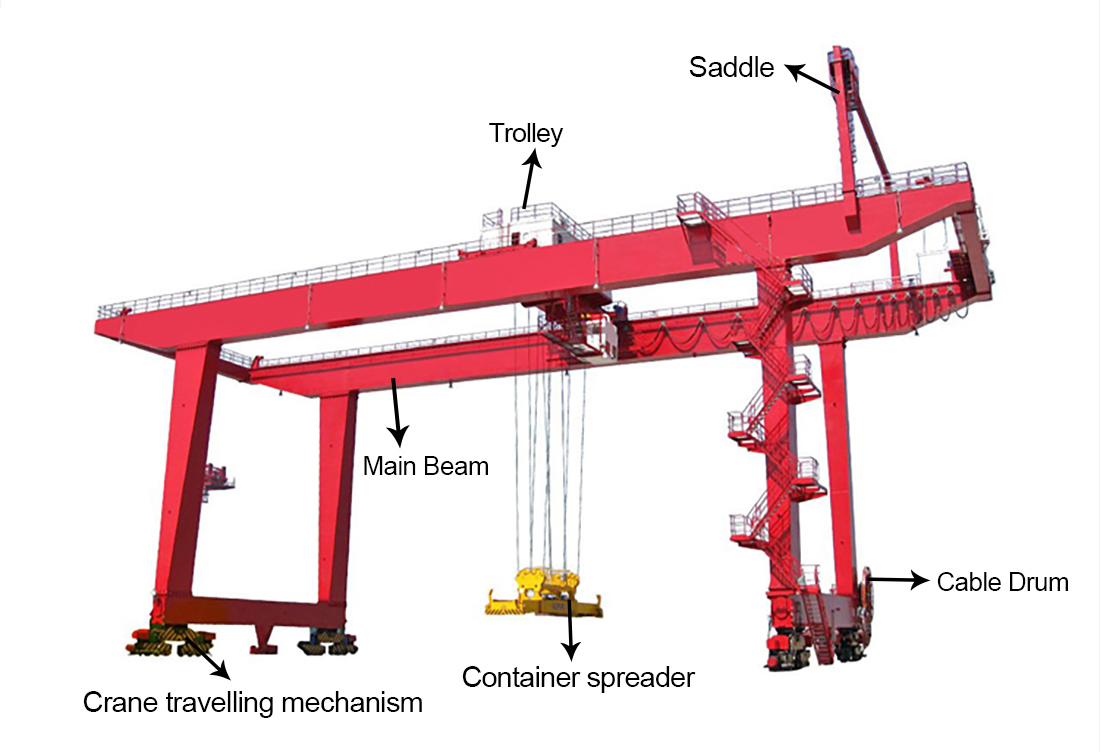

Product Details

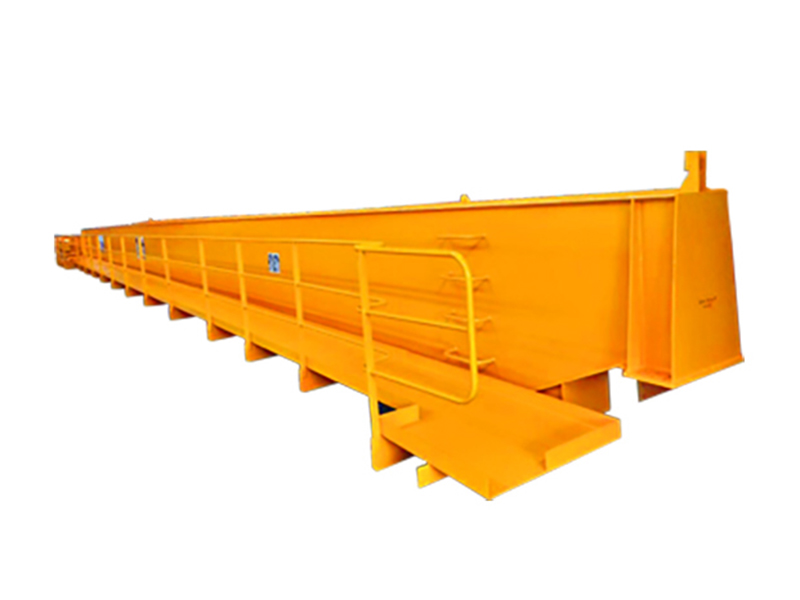

Main Beam
1.With strong box type andstandard camber
2.There will have reinforcementplate inside
themain
girder.

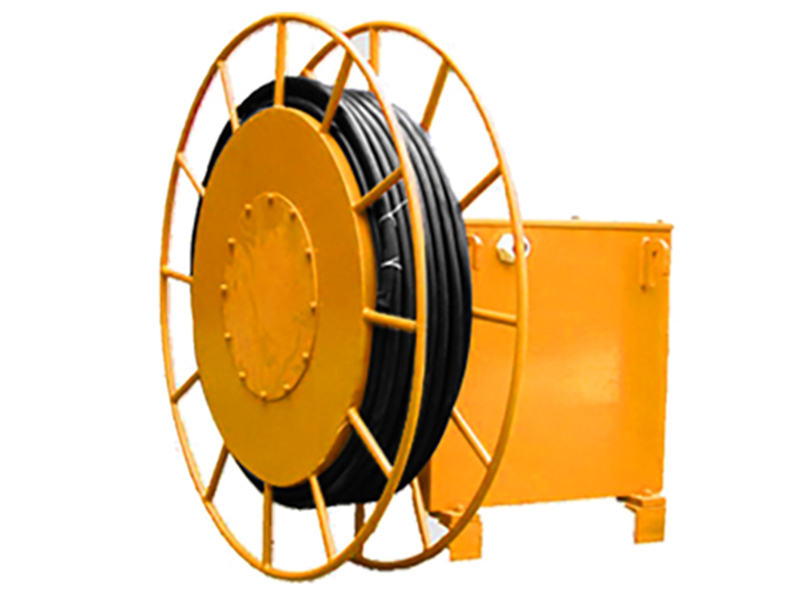

Cable Drum
1.The altitude does not exceed2000 meters.
2.The protection class ofthe collector box is lP54.

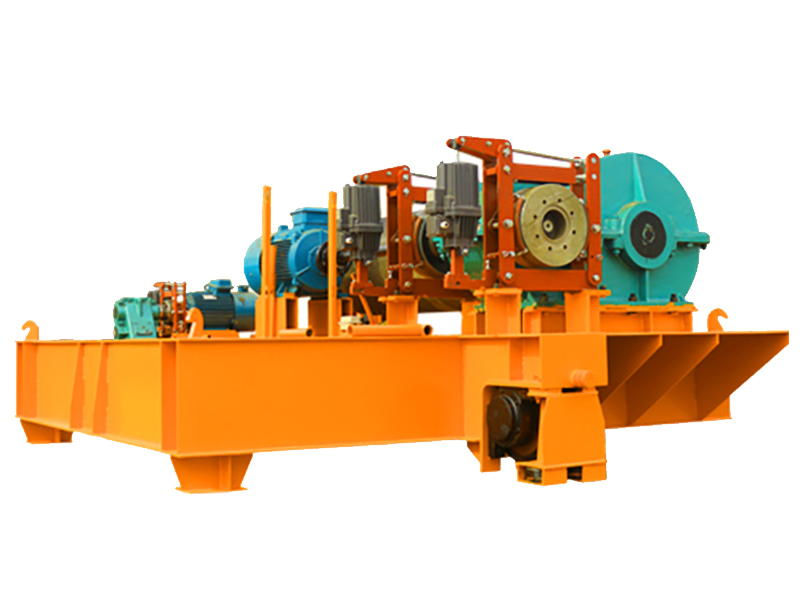

Crane Trolley
1. High working duty hoist mechanism.
2. Working duty: A6-A8.
3. Capacity: 40.5-7Ot.

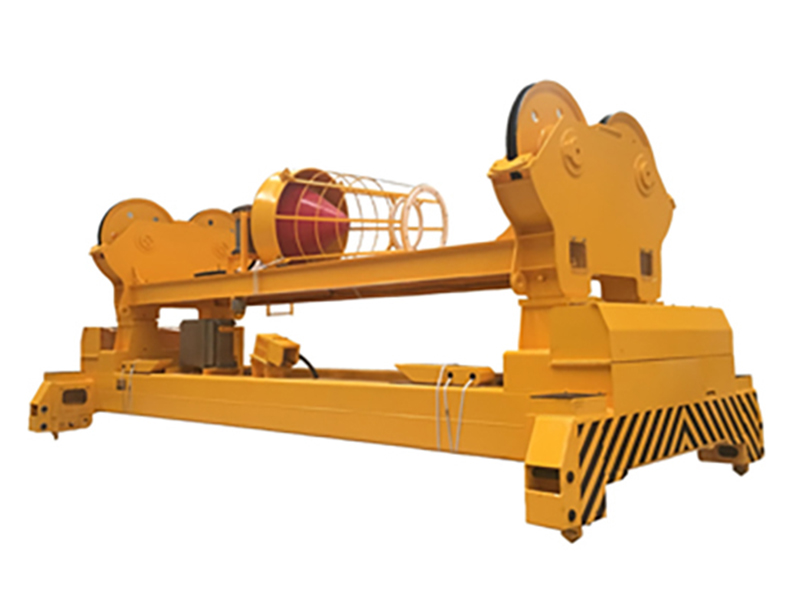

Container Spreader
Reasonable structure, good versatility , strong carryingcapacity, and can be processed and customized

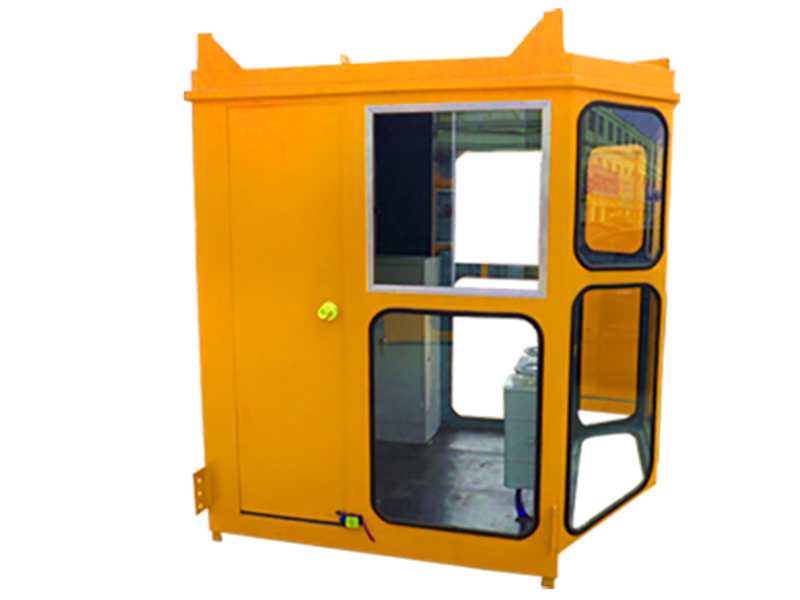

Crane Cabin
1.Close and open type.
2.Air-conditioning provided.
3.Interlocked circuit breakerprovided.
Fine Workmanship
Complete Models
Complete Models
Complete Models
Complete Models
Complete Models
Complete Models
HYCrane VS Others
Our brand

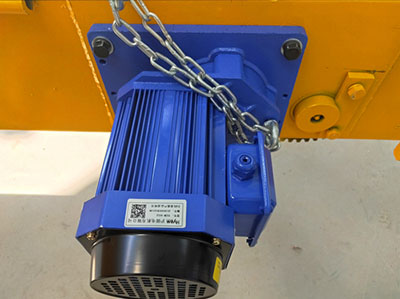

1. Motor reducer and brake are three-in-one
structure.
2. Low noise, stable operation and low maintenance
cost.
3. The motor's built-in anti-drop chain can prevent
the motor's bolts from being loosened, and avoid the
harm to the human body caused by the accidental fall
of the motor, which increases the safety of the
equipment.
Other brand

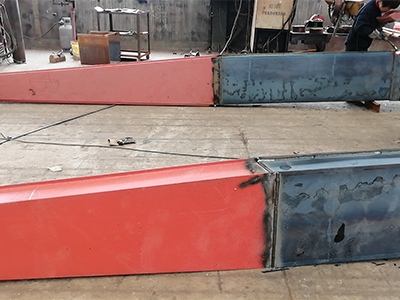

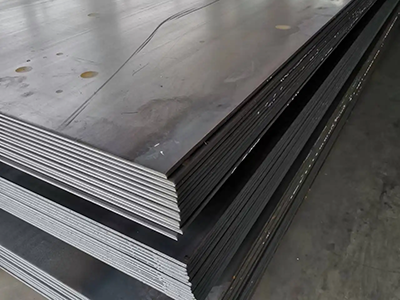

1. Cut corners, such as: originally used 8mm steel
plate, but used 6mm for customers.
2. As shown in the picture, old equipment is often
used for refurbishment.
3. Procurement of non-standard steel from small
manufacturers, product quality is unstable, and
safety risks are high.
Our brand
1. Motor reducer and brake are three-in-one
structure
2. Low noise, stable operation and low maintenance
cost.
3. The motor's built-in anti-drop chain can prevent
the motor's bolts from being loosened, and avoid the
harm to the human body caused by the accidental fall
of the motor, which increases the safety of the
equipment.
Other brand

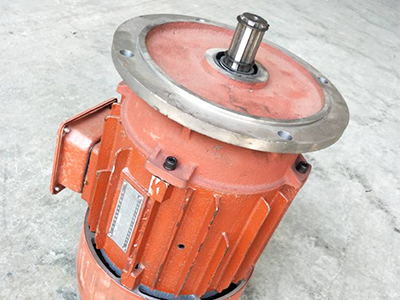

1.Old-style motors: It is noisy, easy to wear, short
service life, and high maintenance cost.
2. The price is low and the quality is very poor.
Our brand

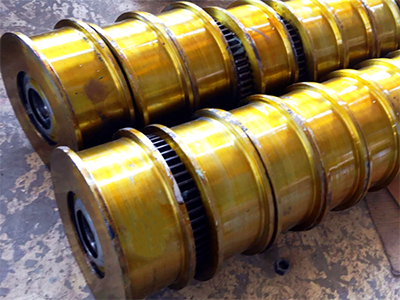

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.
Other brand

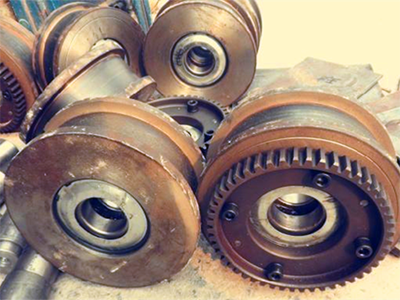

1. Do not use splash fire modulation, easy to
rust.
2. Poor bearing capacity and short service life.
3. Low price.
Our brand

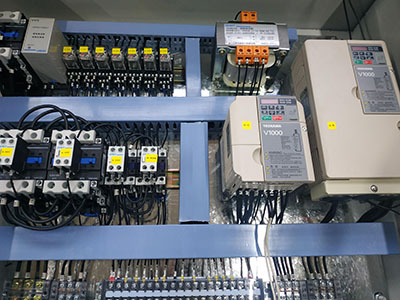

1. Adopting Japanese Yaskawa or German Schneider
inverters not only make the crane run more stable
and safe, but also the fault alarm function of the
inverter makes the maintenance of the crane easier
and more intelligent.
2. The self-adjusting function of the inverter
allows the motor to self-adjust its power output
according to the load of the hoisted object at any
time, which not only increases the service life of
the motor, but also saves the power consumption of
the equipment, thereby saving the factory Cost of
electricity.
Other brand

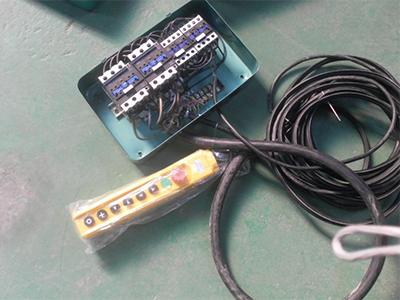

1.The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
Transport
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
RESEARCH ANDDEVELOPMENT
Professional power.
BRAND
Strength ofthe factory.
PRODUCTION
Years ofexperience.
CUSTOM
Spot isenough.
Asia
10-15days
Middle East
15-25days
Africa
30-40days
Europe
30-40days
America
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
