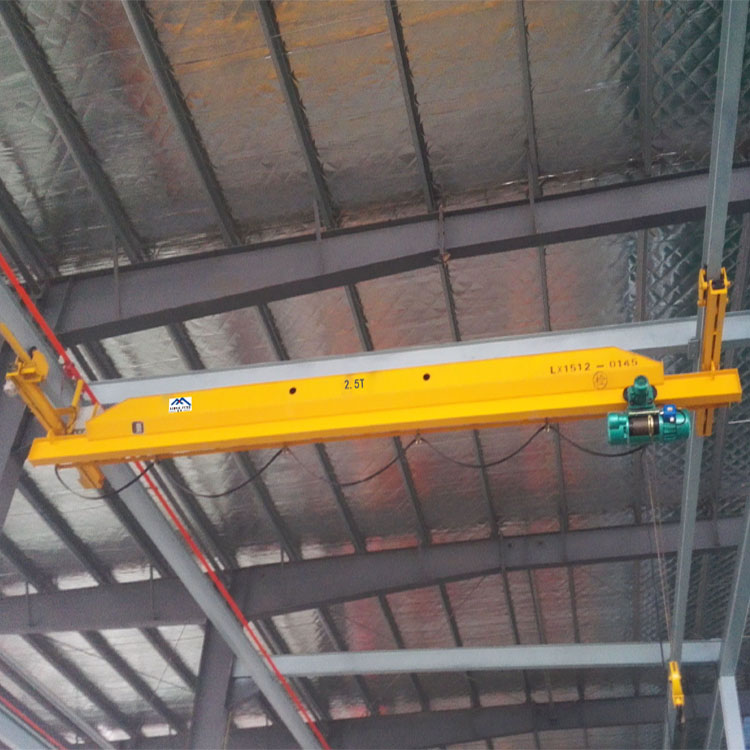

An overhead crane, also known as a bridge crane, is a vital piece of equipment used in manufacturing, construction, and other industries. This type of crane is designed to lift and transport heavy loads using a series of components that work together to create a safe and efficient lifting system. In this article, we will discuss the three basic components of an overhead crane.
The first component of an overhead crane is the bridge. This is the horizontal beam that spans across the width of the crane and supports the hoist and trolley. The bridge is typically made of steel and is supported on both ends by end trucks, which are equipped with wheels that run along rails or tracks mounted on the building structure. The bridge is one of the heaviest components of the crane and is designed to withstand the weight of the load and the stress of movement.
The second component of an overhead crane is the hoist. The hoist is the mechanism that is used to lift and lower the load. It is connected to the trolley and can move horizontally along the length of the bridge. The hoist includes a motor, which drives the lifting mechanism, and a drum, which is wrapped with steel cable or wire rope. The hoist also includes controls, such as buttons or levers, that allow the operator to start, stop, and adjust the lifting speed and direction.
The third component of an overhead crane is the trolley. The trolley is the mechanism that moves the hoist laterally along the length of the bridge. The trolley includes wheels or rollers that run along the lower flange of the bridge, as well as motors and controls that allow the operator to move the load back and forth. The trolley also typically includes a hook or other attachment device that is used to lift and transport the load.
Overhead cranes are complex pieces of equipment that require careful design, installation, and operation to ensure safety and efficiency. The three basic components of an overhead crane are the bridge, hoist, and trolley, which work together to lift and transport heavy loads. Other features and accessories may be included to enhance performance and safety.
