A chain hoist is a mechanical device used to lift and lower heavy loads using a chain. It operates on the principles of mechanical advantage and is commonly used in construction, manufacturing, and various industrial applications. Here’s how a chain hoist works:
Components of a Chain Hoist
Chain: The lifting chain is looped around a sprocket or drum and is used to lift the load.
Sprocket/Drum: This is the wheel or cylinder that the chain wraps around. When the chain is pulled, it rotates the sprocket or drum.
Hook: The hook is attached to the end of the chain and is used to secure the load being lifted.
Gear Mechanism: This includes gears that provide mechanical advantage, allowing the user to lift heavier loads with less effort.
Brake System: This prevents the load from falling when the operator stops pulling the chain.
Frame/Body: The structure that houses the internal components and provides stability.
How It Works

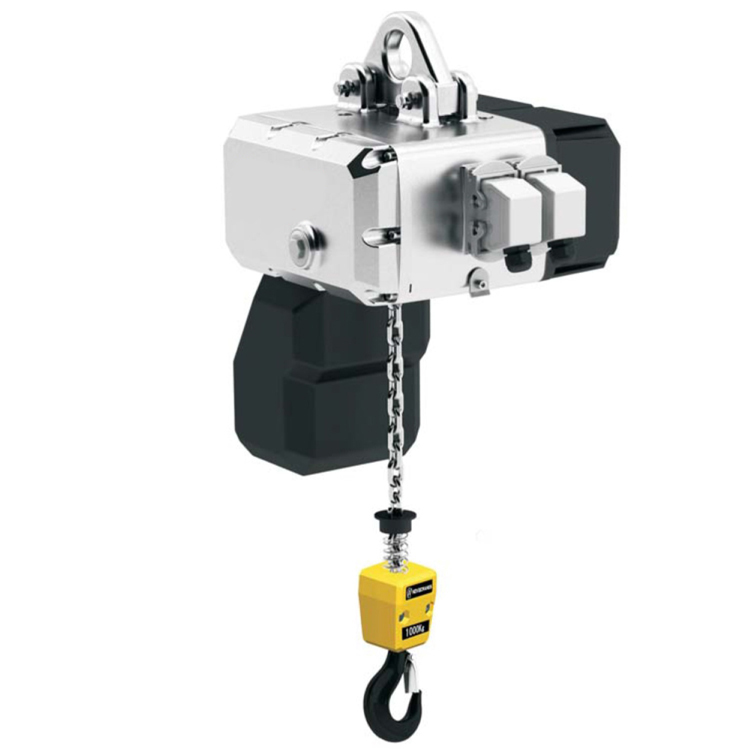

Manual Operation: Most chain hoists are operated manually, although electric versions exist. The operator pulls on the chain, which engages the gear mechanism.
Mechanical Advantage: The gear mechanism reduces the amount of force needed to lift the load. For example, a 4:1 gear ratio means that for every four pulls of the chain, the load is lifted one unit.
Lifting the Load: As the operator pulls the chain, the sprocket or drum rotates, causing the chain to wind around it. This action lifts the hook and the attached load.
Holding the Load: When the operator stops pulling, the brake system engages, holding the load in place. This is crucial for safety, as it prevents accidental dropping of the load.
Lowering the Load: To lower the load, the operator typically releases the brake and allows the chain to unwind slowly, controlling the descent of the load.
Safety Considerations
Load Capacity: Always ensure that the hoist is rated for the weight of the load being lifted.
Inspection: Regularly inspect the chain, hooks, and other components for wear and damage.
Proper Use: Follow manufacturer guidelines for operation to prevent accidents.
Chain hoists are versatile tools that provide a safe and efficient way to lift heavy objects in various settings.
