New design heavy duty portal type crane price

Short Description:

Portal crane achieves high productivity with its advanced functions and compact structure. They run smoothly, ensuring operator comfort while maintaining safety and reliability.

The capacity: 16-40t

Lifting speed: 50-60m/min

luffing speed: 45-50m

Send email to us

Product Detail

Product Tags

Description

Portal cranes are widely used in various industries such as ports, docks, railway stations, shipyards, and freight yards. Their main purpose is to speed up vehicle turnaround, loading and unloading, and the transfer of goods between ships and vehicles, where efficiency is paramount. Portal crane achieves high productivity with its advanced functions and compact structure. They run smoothly, ensuring operator comfort while maintaining safety and reliability. In addition, portal cranes are easy to maintain and look good. A key advantage of portal cranes is their ability to efficiently use limited space in ports, storage yards and other locations. They are suitable for handling empty and full containers and meet the requirements of flatbed truck transportation. In particular, portal cranes provide a cost-effective solution for pre-shipment of containers, general cargo and bulk cargo in multi-purpose ports.

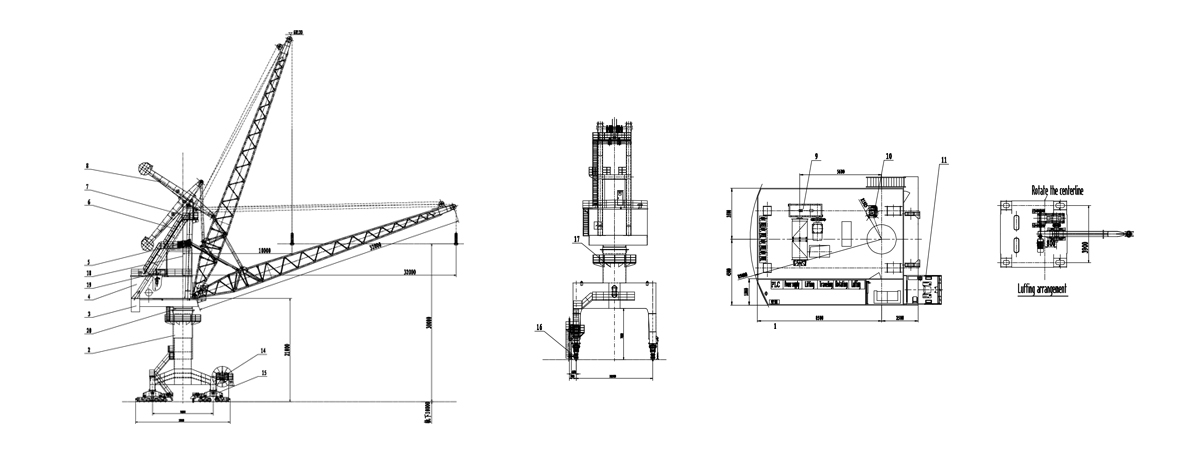

Schematic Drawing

Technical Parameters

Parameters of Portal Crane
Item	Unit	Data
Capacity	t	16-40
Working range	m	30-43
Wheel dis	m	10.5-16
lifting speed	m/min	50-60
Luffing speed	m/min	45-50m
Rotating speed	r/min	1-1.5
Travelling speed	m/min	26
Power source		as your demands
Other		According to your specific usage, specific model and design will

Single beam portal crane

Four link boom portal crane

Floating dock crane

Fine Workmanship

Complete
Models

Adequate
Nventory

Prompt
Delivery

Support
Customization

After-sales
Consultation

Attentive
Service

Product Details

SAFETY FEATURES

Gate Switch
Overload Limiter
Stroke Limiter
Mooring Device
Anti-wind Device

Main Parameters
Load capacity:	20t-200t	(we can supply 20 ton to 200 ton,more other capacity you can learn from other project)
Span:	max 30m	(Standard we could supply span max to 30m, please contac our sales manager for more details)
Lift height:	6m-25m	(We can supply 6 m to 25 m,also we can design as your request )

HYCrane VS Others

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Material

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

Other Brands

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

Other Brands

Our Controller

1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
