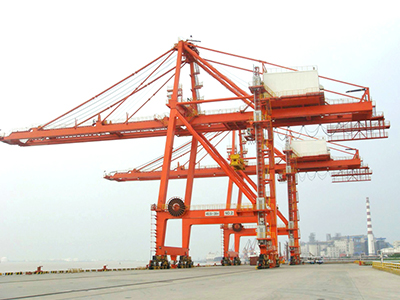

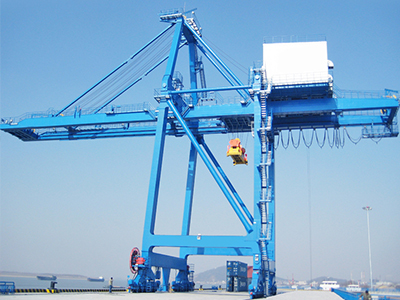

Shore-to-shore container crane for sale
Description
Quayside container cranes (abbreviation STS, QC), mainly composed of steel, lifting structure,tilt mechanism, crane traveling
mechanism, trolley traveling mechanism, machine room, lift container spreader, electrical equipment and other necessary
safety and auxiliary equipment.
Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, with the adoption of PLC control
systems and CMMS automatic-fault monitoring and diagnostic functions,there is sufficient communication and lighting. The steel is divided
into single, double boxstructure,the girder structure and H-type gantry structure.
Advantages:
1. Variable speed, Soft starter, Slipring motors;
2. Wireless Radio Remote control;
3. Shrouded DSL system for power feeding;
4. Flameproof, Cabin Operated;
5. PLC automatic Control system;
6. High quality carbon steel Q345;
7. Port crane design adopt european technology;
8. All electrical applicance adopt china first-class brand, Siemens,Schneider or according to your demands.
Product Details
SAFETY FEATURES
gate switch、overload limiter、
stroke limiter、mooring device、
anti-wind device
| Load capacity: | 30t-60t | (we can supply 30 ton to 60 ton,more other capacity you can learn from other project) |
| Span: | max 22m | (Standard we could supply span max to 22m, please contac our sales manager for more details) |
| Lift height: | 20m-40m | (We can supply 20 m to 40 m,also we can design as your request ) |
ccccccccccc
Technical Parameters
| Rated Load | Under Spreader | 40t | |
| Under Headlock | 50t | ||
| Distance parameter | Out Reach | 35m | |
| Rail Gauge | 16m | ||
| Back Reach | 12m | ||
| Hoisting Height | Above rail | 22m | |
| Below rail | 12m | ||
| Speed | Hoisting | Rated load | 30m/min |
| Empty Spreader | 60m/min | ||
| Trolley travel | 150m/min | ||
| Gantry travel | 30m/min | ||
| Boom hoist | 6min/single stroke | ||
| Spreader Skew | Left and right inclination | ±3° | |
| Fore-and-aft inclination | ±5° | ||
| Plane rotating | ±5° | ||
| Wheel Load | Working condition | 400KN | |
| Non-working condition | 400KN | ||
| Power | 10kV 50 Hz | ||
Package&Delivery
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
RESEARCH ANDDEVELOPMENT
Professional power.
BRAND
Strength ofthe factory.
PRODUCTION
Years ofexperience.
CUSTOM
Spot isenough.
Asia
10-15days
Middle East
15-25days
Africa
30-40days
Europe
30-40days
America
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
