marine deck davit crane for sale
Description
The Marine series is a crane that is fitted with a special base for an easy and fixed installation on any kind of vessel, central controls and distributor disjoint from the structure.
There is a procedure that is included in a twocomponent epoxy base coat 40,50 micron thick. It also has two coats of enamel and finish with a 60/80/ micron layer of two component polyurethane. The unit has a base and secondary jack rods that has a tempered chemical nickel plating of 50 micron and chrome plating of 100 c. There is a double chrome plating on its extension jack rods and rotation cylinders.Marine Ship Deck Hydraulic Jib Crane introduction
The crane is a hydraulic slewing and luffing crane ,for lifting a variety of marine debris and marine life,loading and unloading cargo or other special purposes.
Marine Hydraulic Slewing crane is composed by the cylinder , the fuel tank,crane hoisting mechanism and jib luffing mechanism . And lifting ,rotating,jib luffing are driven by hydraulic system.
Technical parameters of deck crane:
- Load capacity: 1-80 tons
- Lifting height: 1-35m
- Slewing speed: 0-1.0r/s
- Lifting speed: 0-10m/min
- Max/Min working radius: as your requirements
- Slewing degree: >360°
- Max clination: (Heeling) 5°/ (trim) 2°
- Power supply: 3phase 380V 50HZ or customized
- Design temperatur: -10°C<T<+45°C
- Wind speed: Max (working):20m/s Max(no-working):50m/s
- Control: Manual platform or cabin or remote controller
- Certificate: CCS ABS BV or as your requirments
Product Characteristics

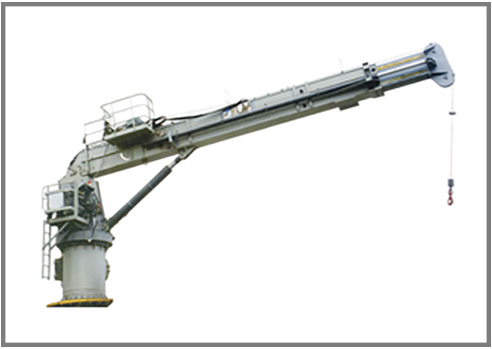

Hydraulic Telescope Crane
Be installed on the ship with the narrow, like marine engineering service ship and small cargo ships
SWL:1-25ton
Length of jib:10-25m

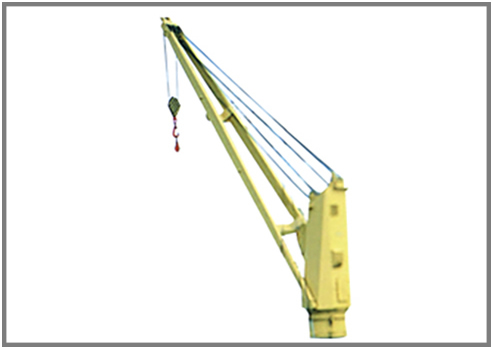

Marine Electrical Hydraulic Cargo Crane
designed to unload goods in bulk carrier or container vessel, controlled by electric type or electric_hydraulic type
SWL:25-60ton
Max.working radius:20-40m

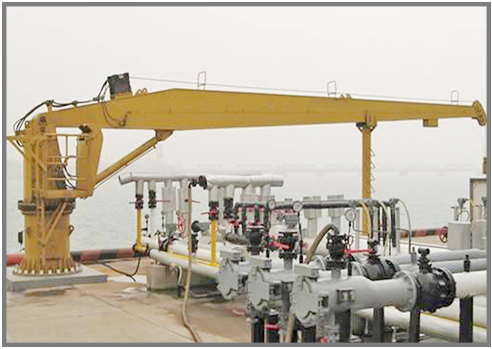

Crane Hydraulic Pipeline
This crane is mounted on a tanker, mainly for ships transporting oil as well as lifting of doogs and other items, it is a common, ideal lifting equipment on the tanker.
s

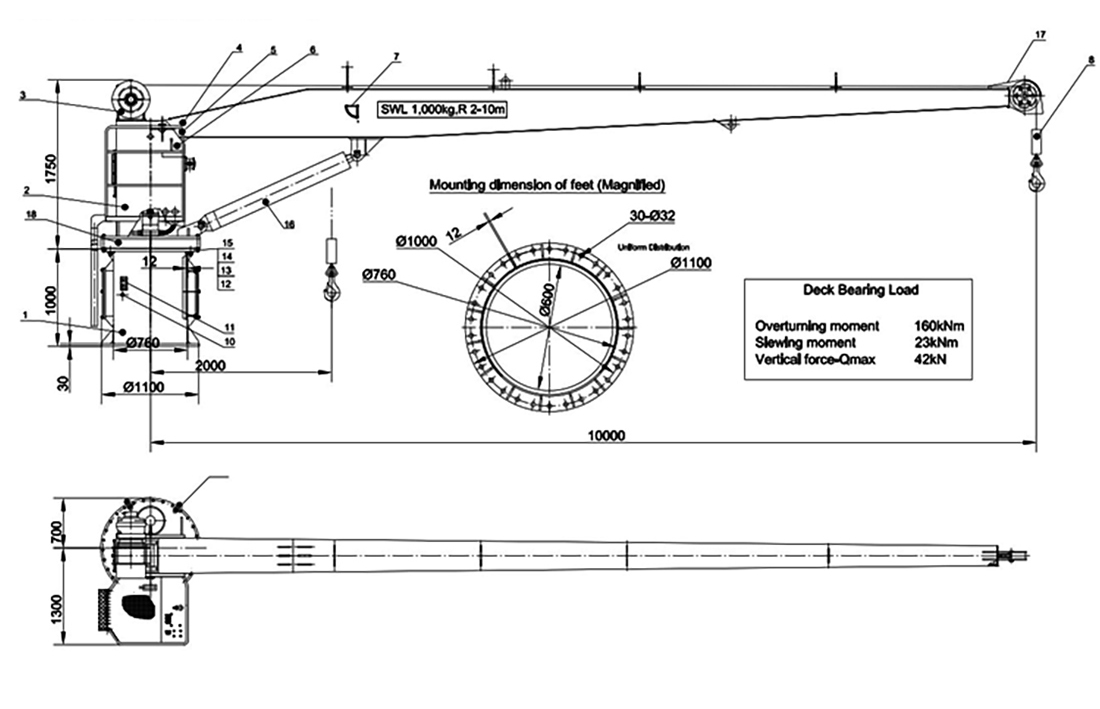

Product Drawing
Technical Parameters
| Item | Unit | Result |
| Rated load | t | 0.5-20 |
| Lifting speed | m/min | 10-15 |
| swing speed | m/min | 0.6-1 |
| lifting height | m | 30-40 |
| rotary range | º | 360 |
| working radius | 5-25 | |
| amplitude time | m | 60-120 |
| allowing inclination | trim.heel | 2°/5° |
| power | kw | 7.5-125 |
