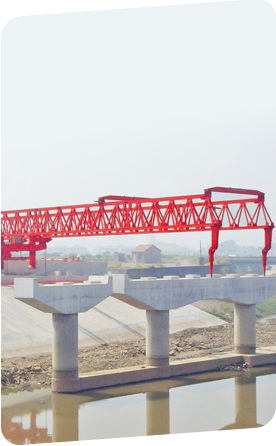

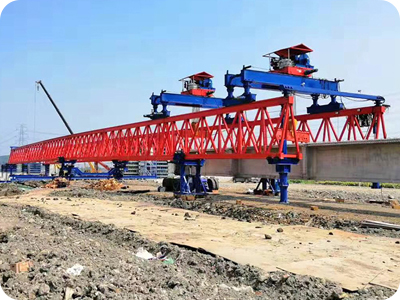

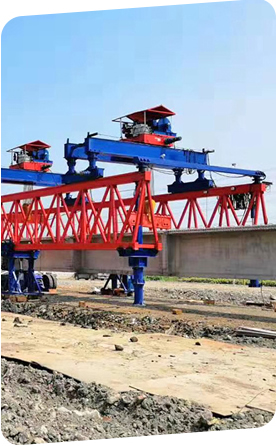

launching gantry applies to highway, railway bridges to the construction site of bridge construction, its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.
launching gantry mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam erection, with high operating efficiency.

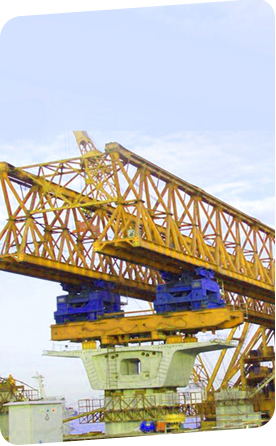

launching gantry is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
Capacity:50-250T
Span:30-60M
Lifting height:5.5M-11m
Working class:A3
Capacity:30-100T
Span:35M
Lifting height:15-20M
Working class:A5-A8
Capacity:10-325T
Span:30-65M
Lifting height:8-35M
Working class:A3-A6
Capacity:50-200 ton or customers' requirements
Girder length:35m-55m
Girder model:T type girder, I type girder, U type girder
Power:Diesel generator

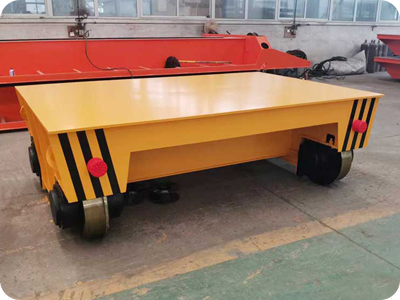

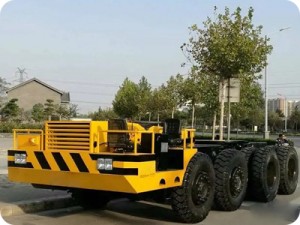

Capacity:1-150 ton
Length:2000mm-10000mm
Weight:1500mm-3000mm
Plarform height:450mm 600mm 800mm 1200mm
Traveling speed:0-25m/min

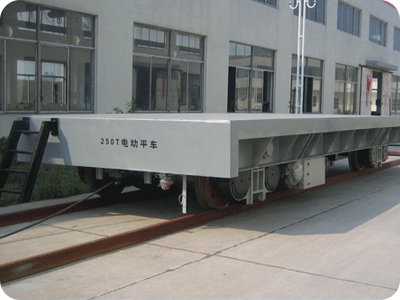

Capacity:2-150ton
Length:2000mm-10000mm
Weight:1500mm-3000mm
Plarform height:450mm 600mm 800mm 1200mm
Traveling speed:18m/min or 25m/min
IT IS USED IN MANY FIELDS
Satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
Professional power.
Strength ofthe factory.
Years ofexperience.
Spot isenough.
10-15days
15-25days
30-40days
30-40days
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
