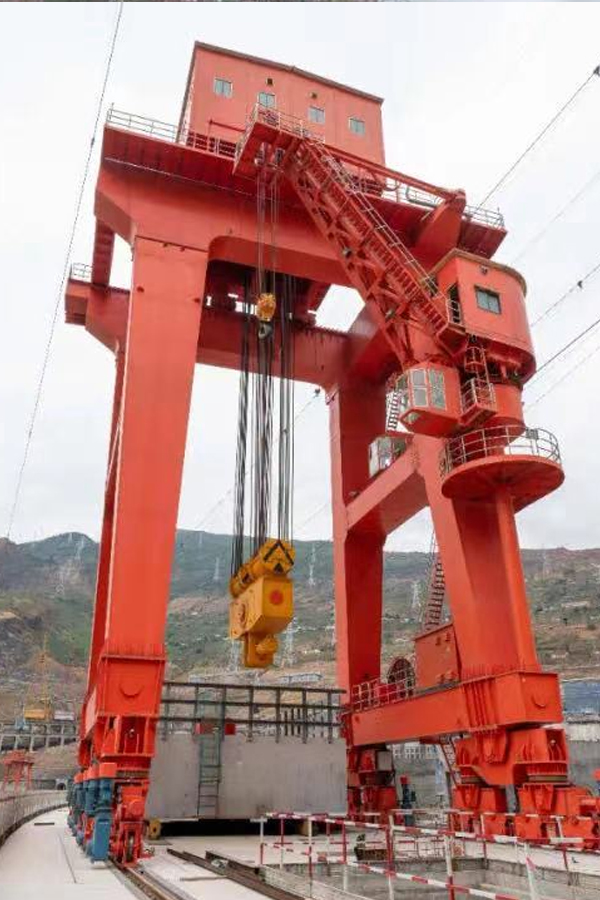

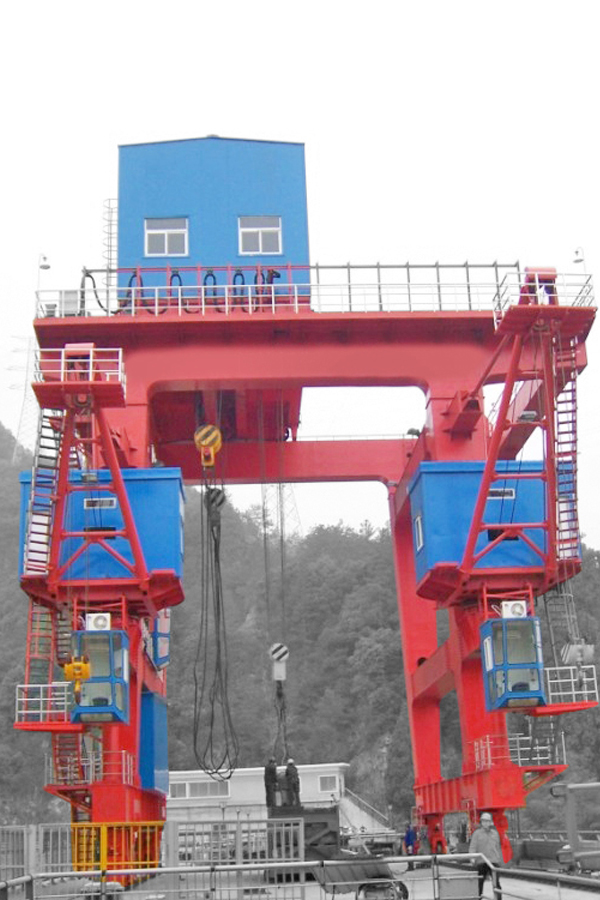

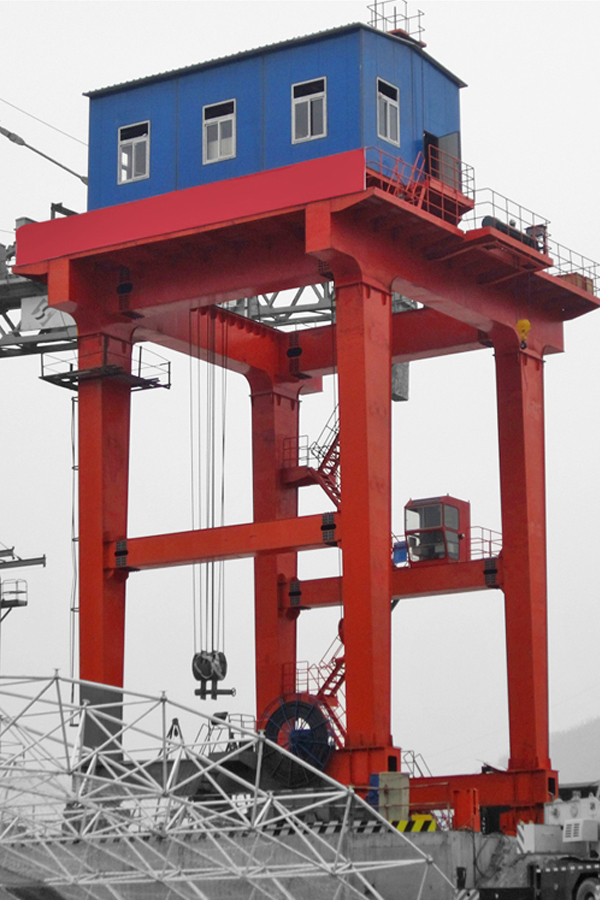

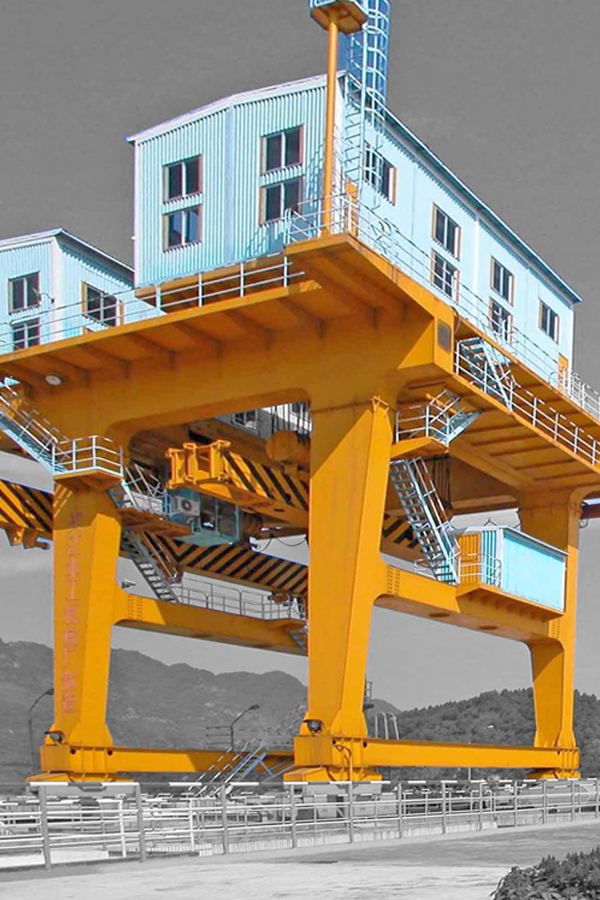

The dam top floodgate gantry crane is mainly used for hydraulic equipment transport, installation and maintenance of hydroelectric generating units such as floodgates, trash rack etc. Model MQ gantry crane can be divided into two kinds: unidirectional crane and bidirectional crane. The unidirectional hoist is fixed on the gantry frame. The Gantry runs along the track on the dam. And its service zone is a line, which can only be used to lift a gate of the same row, while the double direction gantry crane is with a trolley running perpendicular to the crane traveling. Thus, the double direction gantry crane can lift the floodgate or trash racks of different rows of upstream side and the downstream side. Features of Dam Floodgate Gantry Crane: 1. Steel plate or box-type girder, electric driving motor of lifting mechanism, gear reducing hoist; 2. The operating mechanism of the crane is driven by the motor, and the closed operating room is mounted on the frame; 3. Running buffer device and windproof rail clamp are equipped under the gantry leg; 4. The spreader moves up and down along the gate slot or around the hinge of the gate; 5. The opening and closing of the gate in the movable water is related to the size of the load and the water hydrodynamic pressure; 6. For large span gate, it needs double lifting points and keep synchronization; 7. Large Lifting capacity, low speed, low work level, generally not more than 4 m / min, only for some quick gate, it can reach 10-14 m / min;
Water system management
water conservancy project
aquaculture
water conservancy project
item
|
value
|
Feature
|
Gantry Crane
|
Applicable Industries
|
Construction works , hydropower station
|
Showroom Location
|
Peru, Indonesia, Kenya, Argentina, South Korea, Colombia, Algeria, Bangladesh, Kyrgyzstan
|
Video outgoing-inspection
|
Provided
|
Machinery Test Report
|
Provided
|
Marketing Type
|
New Product 2022
|
Warranty of core components
|
1 Year
|
Core Components
|
Gearbox, Motor, Gear, Lifting platform, Operating platform, Gantry
|
Condition
|
New
|
Application
|
Outdoor
|
Rated Loading Capacity
|
125 KG, 350 KG, 100 kg, 200 Kg, 30 Ton
|
Max. Lifting Height
|
Other
|
Span
|
18-35m
|
Place of Origin
|
China
|
Henan
|
|
Brand Name
|
YT
|
Warranty
|
5 Year
|
Weight (KG)
|
350000kg
|
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
Professional power.
Strength ofthe factory.
Years ofexperience.
Spot isenough.
10-15days
15-25days
30-40days
30-40days
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
