high quality warehouse gantry cranes
Description

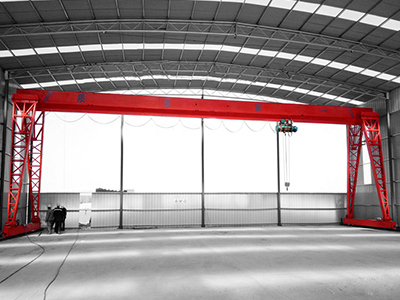

Truss type gantry crane
Truss type gantry crane is light in dead weight and strong in wind resistance. It is suitable for manufacturing moulds, automobile repair factories, mines, civil construction sites and lifting occasions. According to different material handling requirements, different configurations of truss gantry crane are designed. For truss type gantry crane, there are mainly single girder gantry crane and double girder gantry crane
Technical Parameters
| Capacity | 3T | 5T | 10T | 15T |
| Speed Lifting | m/min | 8, 8/0.8 | 8, 8/0.8 | 7, 7/0.7 | 3.5 |
| Speed Cross Travelling | m/min | 20 | 20 | 20 | 20 |
| Long Travelling—Ground | m/min | 20 | 20 | 20 | 20 |
| Long Travelling—Cabin | m/min | 20,30,45 | 20,30,40 | 30,40 | 30,40 |
| Motor Lifting | Type/kw | ZD41-4/4.5
ZDS1-1/0.4/4.5 |
ZD141-7/4.5
ZDS1-0.8/4.5 |
ZD151–4/13
ZDS11.5/4.5 |
ZD151–4/13 |
| Motor Cross Travelling | Type/kw | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21–4/0.8*2 | ZDY121–4/0.8*2 |
| Electric Hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 |
| Lifting Height | m | 6, 9, 12, 18, 24, 30 | |||
| Span | m | 12, 16, 20, 24, 30 | |||
| Operational Method | Pendent Line With Press Button / Cabin / Remote | ||||

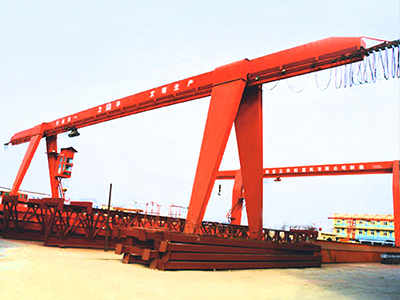

Box type gantry crane
Single beam gantry crane is used together with CD, MD type electric hoist. It is a track travelling small and medium-sized crane, with the capacity of crane from 5T to 32T, the span of crane from 12m to 30m, and the working temperature within-20--+40 centigrade.
This type crane is a regular crane widely used at open ground and warehouses.unload or grab material. It has 2 controlling methods.namely ground controlling and room controlling.
Technical Parameters
|
Specifications of HY Gantry crane
|
|||
|
Loading capacity
|
0.5~32t
|
||
|
lifting height
|
3~50 m or customiszed
|
||
|
Travling speed
|
0.3~ 10 m/min
|
||
|
lifting mechanism
|
Wire rope hoist or electric chain hoist
|
||
|
Working class
|
A3~A8
|
||
|
Working temperature
|
-20 ~ 40 ℃
|
||
|
Power supply
|
AC-3Phase-220/230/380/400/415/440V-50/60Hz
|
||
|
Control voltage
|
DC-36V
|
||
|
Motor protector class
|
IP54/IP55
|
||
Transport
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
RESEARCH ANDDEVELOPMENT
Professional power.
BRAND
Strength ofthe factory.
PRODUCTION
Years ofexperience.
CUSTOM
Spot isenough.
Asia
10-15days
Middle East
15-25days
Africa
30-40days
Europe
30-40days
America
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
