Heavy duty lifting equipment electrical wire rope hoist

Short Description:

Electric wire rope hoist is a highly valued equipment in the industrial sector. Its structure, lifting capacity, versatility, and reliability make it a preferred choice for a wide range of applications, establishing its significant position in the industrial landscape.

The capacity: 0.3-32ton

Lifting height: 3-30m

Lifting speed: 0.35-8m/min

Send email to us

Product Detail

Product Tags

Description

The electric wire rope hoist is a specialized industrial lifting equipment with a unique structural design that offers several advantages in various industrial applications.
The structure of an electric wire rope hoist consists of a motorized drum, wire rope, and a lifting hook. The motorized drum is responsible for winding and unwinding the wire rope, allowing for smooth and controlled lifting and lowering operations. The wire rope is made of high-strength steel, offering excellent durability and load-bearing capacity. The lifting hook is designed to securely hold the load during transportation.
One of the key advantages of an electric wire rope hoist is its high lifting capacity. The use of a wire rope with multiple strands provides superior strength, allowing the hoist to lift heavy loads safely. This makes it suitable for applications that require lifting and moving large and bulky objects, such as in the construction, mining, and manufacturing industries.
Another advantage of an electric wire rope hoist is its versatility. The ability to control the lifting and lowering operations precisely makes it ideal for handling delicate and sensitive materials. Additionally, the hoist can be equipped with various attachments, such as a fixed or rotating trolley, to cater to different lifting requirements. This flexibility enables the electric wire rope hoist to be used in a wide range of applications, including warehouses, workshops, and assembly lines.
In the industrial sector, the electric wire rope hoist holds a prominent position due to its reliability and efficiency. It plays a crucial role in improving productivity and ensuring the safety of lifting operations. The precise control and smooth movements provided by the hoist allow for efficient handling of materials, reducing the risk of accidents and damages. Moreover, its robust construction and ability to handle heavy loads make it an essential tool for various industries, contributing to improved operational efficiency.

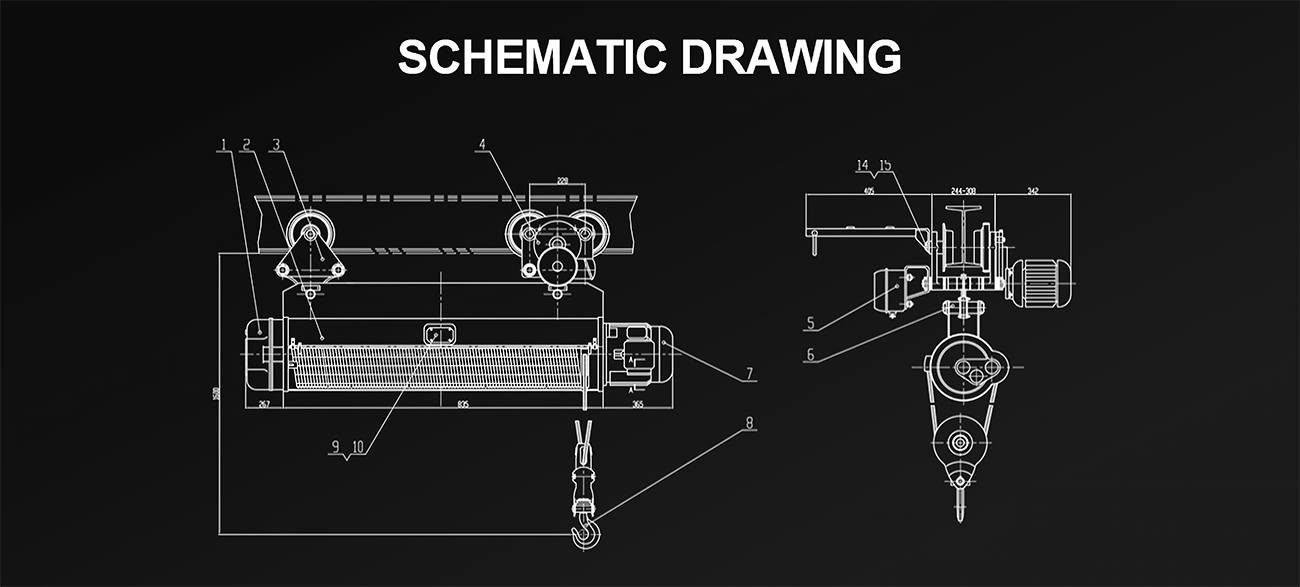

Schematic Drawing

Technical Parameters

Parameters of Electric Wire Rope Hoist
Item	Unit	Specfications
capacity	ton	0.3-32
lifting height	m	3-30
lifting speed	m/min	0.35-8m/min
travelling speed	m/min	20-30
wire rope	m	3.6-25.5
working system		FC=25%（intermediate）
Power supply		220 ~ 690V,50/60Hz,3Phase

01
——

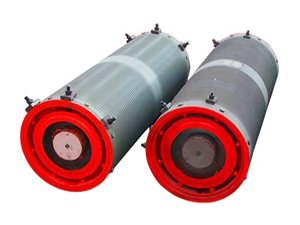

DRUM

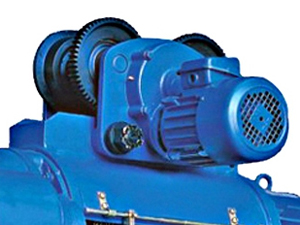

02
——
SPORTS CAR

03
——

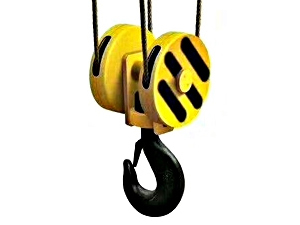

LIFTING HOOK

04
——

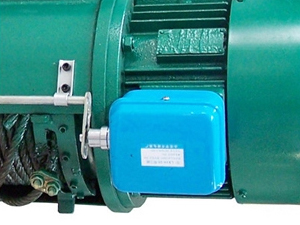

LIMIT SWITCH

05
——

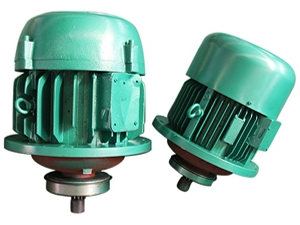

MOTOR

06
——

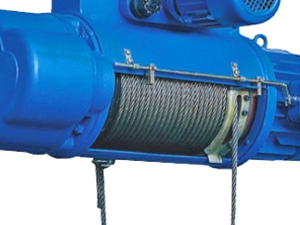

ROPE GUIDE

electric wire rope hoist steel wire rope

07
——

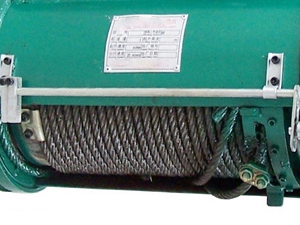

STEEL WIRE ROPE

08
——

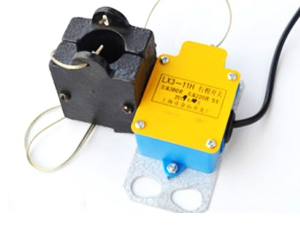

WEIGHT LIMIT

HYCrane VS Others

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Material

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

Other Brands

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

Other Brands

Our Controller

1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
