Factory sell all tonnage Marine boom crane for sale

Short Description:

Engineers will design the Marine Deck Crane, Marine Crane, Ship Crane according your requirements and the crane usage.


  • SWL: 1-100T
  • Length of jib: 10-100m
  • Hoisting height: 1-140m
  • Product Detail

    Product Tags

    Description

    deck-crane (1)

    A deck crane is a type of crane that is specifically designed to be mounted on the deck of a ship or other vessels. They are used for a variety of tasks on board a vessel, including loading and unloading cargo, moving heavy equipment and machinery, and assisting with maintenance and repair operations. Deck cranes come in a range of sizes and capacities, depending on the requirements of the vessel and the types of loads they will be expected to handle. They can be operated manually, or powered by electric or hydraulic systems. Some deck cranes are also equipped with telescoping booms or other features that allow them to reach over the sides of the vessel to load or unload cargo. In addition to their use on ships and other seagoing vessels, deck cranes are also commonly used in ports and harbors, as well as in offshore oil and gas operations. They are an essential piece of equipment in the maritime industry, and play a critical role in keeping goods and materials moving around the world.

    Safety devices


    1. Anti-two block system: A device that prevents the crane's hook block from colliding with the boom tip or other parts of the crane. The anti-two block system will automatically stop the hoist if the hook block gets too close to the boom tip or other obstructions. 2. Emergency stop button: A large, easily accessible button that allows the operator to quickly stop all crane movements in an emergency situation.

    3. Limit switches: Switches that limit the range of movement of the crane's hoist, boom, or other components. For example, a hoist limit switch may prevent the hoist from lifting the load beyond a certain height.
    4. Overload protection: A system that prevents the crane from lifting loads that are too heavy for its SWL. This may include mechanical stops, hydraulic pressure relief valves, or other devices.
    5. Area protection: Sensors orother devices that help prevent collisions with other cranes, vessels, or structures in the crane's operating area. This may include proximity sensors, cameras, or audible alarms.
    6. Emergency lowering system: A system that allows the crane's load to be safely lowered to the ground in the event of a power failure or other emergency situation.

    Product Characteristics

    甲板吊-详情_r7_c1_r2_c2

    Hydraulic Telescope Crane

    Be installed on the ship with the narrow, like marine engineering service ship and small cargo ships
    SWL:1-25ton
    Length of jib:10-25m

    甲板吊-详情_r7_c1_r4_c4

    Marine Electrical Hydraulic Cargo Crane

    designed to unload goods in bulk carrier or container vessel, controlled by electric type or electric_hydraulic type
    SWL:25-60ton
    Max.working radius:20-40m

    甲板吊-详情_r7_c1_r8_c4

    Crane Hydraulic Pipeline

    This crane is mounted on a tanker, mainly for ships transporting oil as well as lifting of doogs and other items, it is a common, ideal lifting equipment on the tanker.
    s

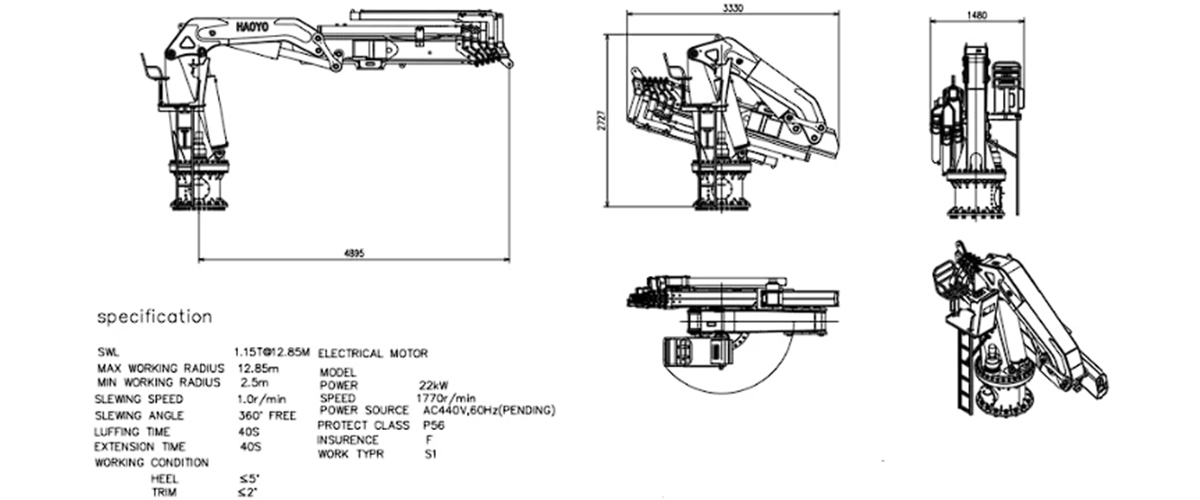

    Product Drawing

    deck crane

    Technical Parameters

    Rated Capacity
    t
    5
    10
    20
    30
    50
    70
    Beam length
    mm
    2000~6000
    Lifting height
    mm
    2000~6000
    Lifting speed
    m/min
    8; 8/0.8
    Travelling speed
    m/min
    10; 20
    Turning speed
    r/min
    0.76
    0.69
    0.6
    0.53
    0.48
    0.46
    Turning degree
    degree
    360°
    Duty Class
    A3
    Power source
    380V, 50HZ, 3 phase (or other standard)
    Working temperature
    -20~42°C
    Control model
    Pendant push button control or remote control



    Transport

    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    1
    2
    3
    4

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
