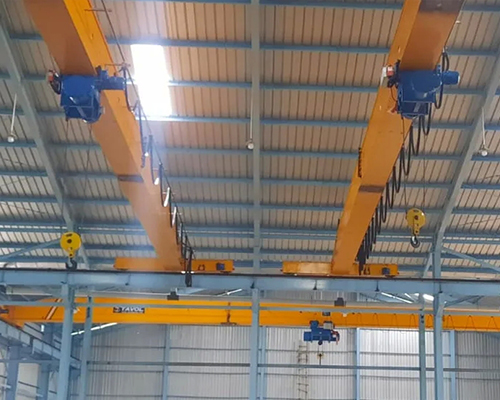

European type Light Duty EOT Single Girder Overhead Crane 5 Ton

Short Description:

european crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.

The capacity: 0.25-30ton

The span: 7.5-32mtrs

Lifting height: 6-30mtrs

Send email to us

Product Detail

Product Tags

Description

It has the Features with new european style design, Nice appearance, use the soft start motor with Low Noise. Adopt the domestic or International spare parts brand.

The failure rate is particularly low and the safety factor is higher, work efficiency surpasses competitors by more than 30%. under normal working environment, it can work continuously for 24 hours in short intermittent time.

Compact Appearance

Lower Working Noise

Variable Frequency Drive

Special C Steel Trolley for Flat Cable

Easy Installation

Easy Maintenance

HD series electric hoist European crane is our new designed crane for the low workshop and high lifting height demands. Its technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and CE,ISO(International),working class A5-A7

Product Details

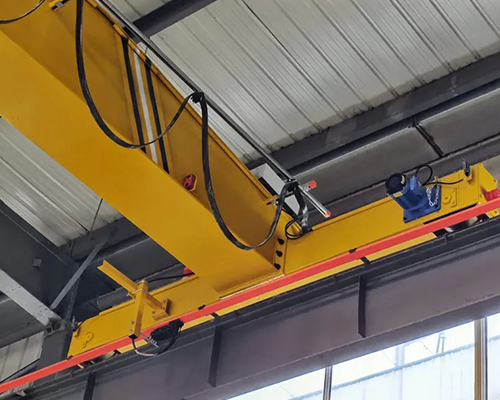

End beam

1.Uses rectangular tube manufacturing module
2.Buffer motor drive
3.With roller bearings and permanent iubncation

Crane Hook

1.Pulley Diameter:125/0160/0209/0304

2.Material:Hook 35CrMo

3.Tonnage:3.2-32t

Main Beam

1.With strong box type and standard camber

2. There will have reinforcement plate inside themain girder

Europe Hoist

1.Pendent & remote control
2.Capacity:3.2-32t
3.Height: max 100m

Technical Parameters

No	Item	Data
1	Lift capacity	5T
2	Span	9.9M
3	Lift height	4.2M
4	Work duty	A5
5	Control method	Wireless remote
6	Electrical parts	Schneider
7	Lift motor	7.5KW
8	Cross travel motor	0.96KW
9	Long travel motor	0.8KW X 2
10	Bus bar with accessories	4P X 14MM2
11	Runway with accessories	P24
12	Control voltage	AC 36V
13	Power supply	480V/60Hz/3P

Application

IT IS USED IN MANY FIELDS

Can satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.
