eot crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where
a high hook lift height is required. Europe type single girder overhead crane’s lifting mechanism is Europe type
hoist, the advantages of Europe type hoist are the compact structure, light and safe,big lift capacity, easy to
maintain, and efficient high lifting speed, smooth low lifting speed, precise positioning, it also has the
humanization design of control pendant, novel design, good-looking appearance.
The top running configuration is best used in cases where the end user has issues with headroom. The most space
efficient configuration is the double girder, top running crane system.
Advantage of Euro Design Overhead Bridge Crane:
1.Cut Down Your Plant or Factory Building Investment.
2.Improve Your Production Efficiency, Create More Value for Your Investment.
3.Suitable different Operating Conditions, And Provide you One-Stop Solutions.
4.Compact Design, Low Headroom, Safety With High Performance.
5.Reduce Daily Maintenance, Easy Operation And Energy Saving.
6.You will get a 30% Increasing Production upon using Tavol Cranes. Also it allows one people to perform the
task of 3 or more people.
Lifting Capacity | 0.25ton to 30ton |
Lifting Height | 6m to 30m |
Span Length | 7.5m to 32m |
Working Duty | Class C or D |
Power | 3Ph 380v 50Hz or according to your requirement |
1.Uses rectangular tube manufacturing module
2.Buffer motor drive
3.With roller bearings and permanent iubncation
1.Pendent & remote control
2.Capacity:3.2-32t
3.Height: max 100m

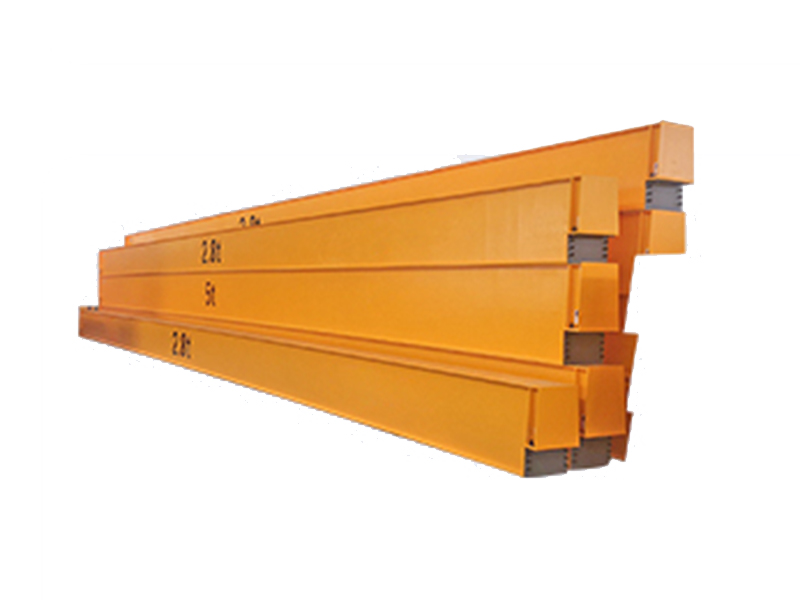

1.With strong box type and standard camber
2.There will have reinforcement plate inside themain girder

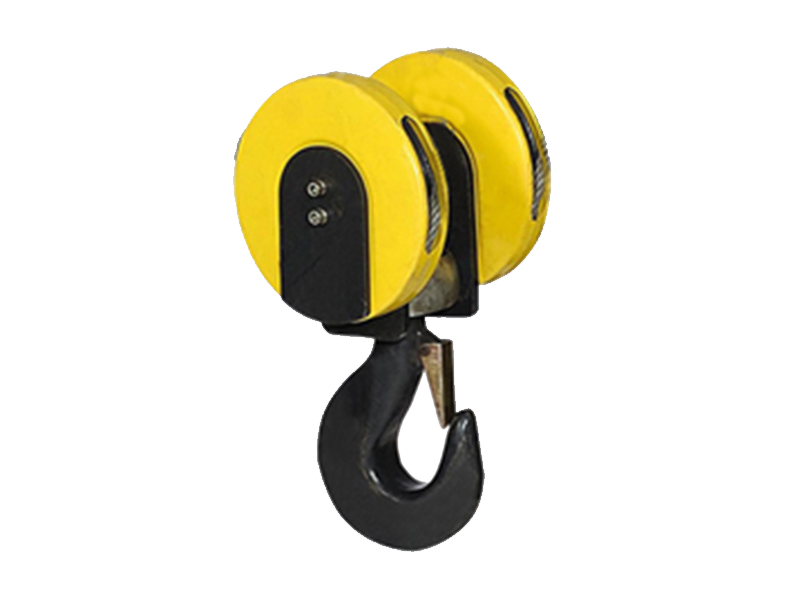

1.Pulley Diameter:125/0160/D209/0304
2.Material:Hook 35CrMo
3.Tonnage:3.2-32t
Item | Unit | Result |
Lifting Capacity | ton | 0.25-20 |
Working Grade | Class C or D | |
Lifting Height | m | 6-30 |
Span | m | 7.5-32 |
Working Environment Temperature | °C | -25~40 |
Control Mode | cabin control/remote control | |
Power Source | three-phase 380V 50HZ |
IT IS USED IN MANY FIELDS
Can satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.
Raw Material
1. The raw material procurement process is strict and has
been inspected by quality inspectors.
2. The materials used are all steel products from major
steel mills, and the quality is guaranteed.
3. Strictly code into inventory.
1. Cut corners, such as: originally used 8mm steel plate,
but used 6mm for customers.
2. As shown in the picture, old equipment is often used
for refurbishment.
3. Procurement of non-standard steel from small
manufacturers, product quality is unstable, and safety
risks are high.
1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The motor's built-in anti-drop chain can prevent the
motor's bolts from being loosened, and avoid the harm to
the human body caused by the accidental fall of the
motor, which increases the safety of the equipment.
1.Old-style motors: It is noisy, easy to wear, short
service life, and high maintenance cost.
2. The price is low and the quality is very poor.
Travelling Motor
Wheels
All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.
1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.
1. Adopting Japanese Yaskawa or German Schneider
inverters not only make the crane run more stable and
safe, but also the fault alarm function of the inverter
makes the maintenance of the crane easier and more
intelligent.
2. The self-adjusting function of the inverter allows
the motor to self-adjust its power output according to
the load of the hoisted object at any time, which not
only increases the service life of the motor, but also
saves the power consumption of the equipment, thereby
saving the factory Cost of electricity.
1.The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
Control System
HYCrane is a professional exported company.
Our products have been exported to
Indonesia,Mexico,Australian,India,Bangladesh,Philippines,Singapore,Malaysia,Pakistan,Sri
Lanka,Russia,Ethiopia,Saudi
Arabia,Egypt,KZ,Mongolia,Uzbekistant,Turkmentan,Thailand ects.
HYCrane will serve you with rich exported experience which can help you save
much trouble and help you solve many problems.
Professional power.
Strength ofthe factory.
Years ofexperience.
Spot isenough.
10-15days
15-25days
30-40days
30-40days
30-35days

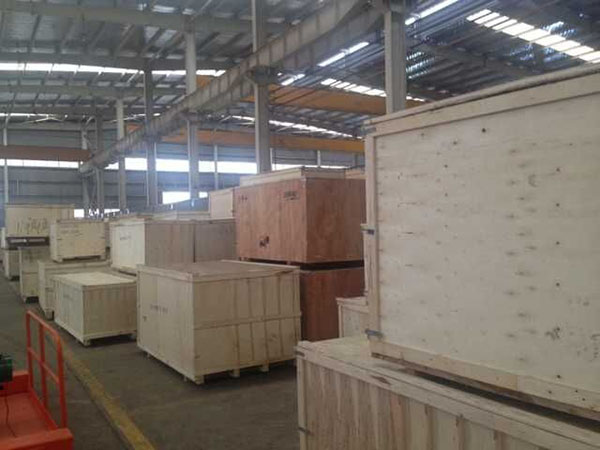

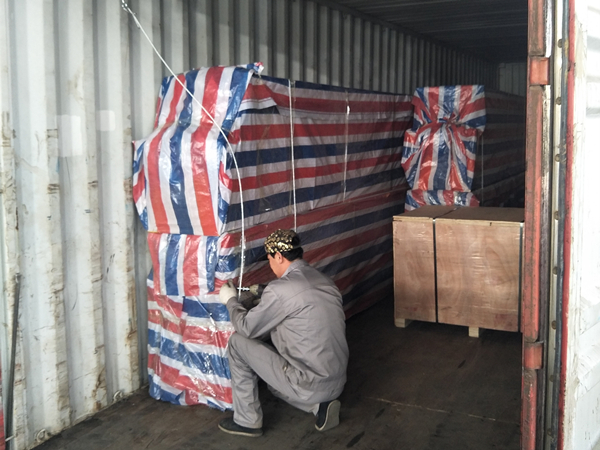

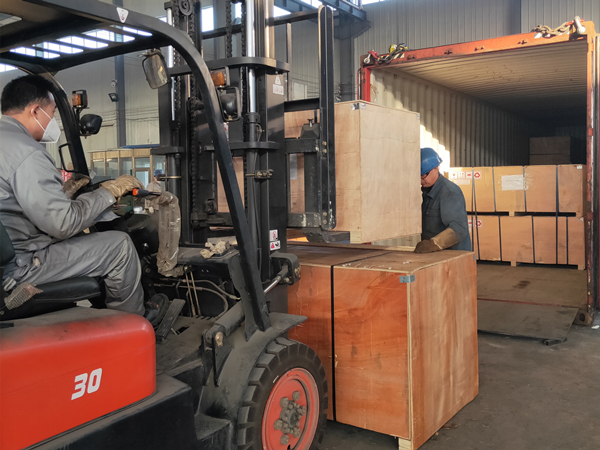

By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
