Europe Type Double Girder Overhead Crane For Factory

Short Description:

European double girder cranes have the advantages of decreasing customer investment, making full use of on-site space, improving production power, good combination, safety and reliability, and low failure rate.

The capacity: 5-350ton

The span: 10.5-31.5m

The working: A5-A6

Send email to us

Product Detail

Product Tags

Description

About European Double Girder Bridge

Double girder eot crane mainly consists of bridge, trolley travelling mechanism, trolley and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency.
Europe type double girder overhead crane with dual hook ,The hook bridge crane can be used to lift loads from 5 tons to 350 tons, which is widely used in warehouse, factories and other working sites.
double girder eot crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.

We Can Make You Safer

1.Weight overload protection device Weight overload protection device will warn when the lifted materials are beyond the capacity, and the displayer will show the data.
2. Current overload protection device shall cut off the power when the current overstep the set figure.
3. Emergency stop system shall be used to stop all motions once any emergency occurs to avoid more damage.
4. The limit switch prevent the travelling mechanism from over travel.
5. The polyurethane buffer can absorb impact and help travelling mechanism stop softly and harmlessly.

Advantage of Europe Design Overhead Bridge Crane

1.Cut Down Your Plant or Factory Building Investment.
2.Improve Your Production Efficiency, Create More Value for Your Investment.
3.Suitable different Operating Conditions, And Provide you One-Stop Solutions.
4.Compact Design, Low Headroom, Safety With High Performance.
5.Reduce Daily Maintenance, Easy Operation And Energy Saving.
6.You will get a 30% Increasing Production upon using Tavol Cranes. Also it allows one people to perform the task of 3 or more people.

Main Parameters

The Capacity	5ton to 350ton
The Span	10.5m to 31.5m
The Working Grade	A5 to A6
The Working Temprature	-25℃ to 40℃

Fine Workmanship

Spot
Wholesale

Quality
Assurance

Low
Noise

HY Crane

Fine
Workmanship

Excellent
Material

After-sale
Service

We take great pride in the quality and workmanship of our cranes as they are carefully designed and built to meet the highest standards in the industry. With a focus on durability, efficiency and safety, our lifting equipment is the perfect solution for all your heavy lifting needs.
What sets our lifting equipment apart is our attention to detail and commitment to excellence. Every component of our cranes undergoes rigorous testing and quality control measures to ensure optimum performance and longevity. From precision crafted gantry systems to robust frames and advanced control mechanisms, every aspect of our lifting equipment is engineered with precision and expertise.
Whether you need a crane for a construction site, manufacturing plant or any other heavy-duty job, our lifting equipment is the epitome of reliability and efficiency. With their craftsmanship and superior engineering, our cranes deliver exceptional lifting capabilities, allowing you to move any load with ease and confidence. Invest in our reliable and durable lifting equipment today and experience the power and precision our products bring to your operation.

End Beam

1.Uses rectangular tube manufacturing module
2.Buffer motor drive
3.With roller bearings and permanent iubncation

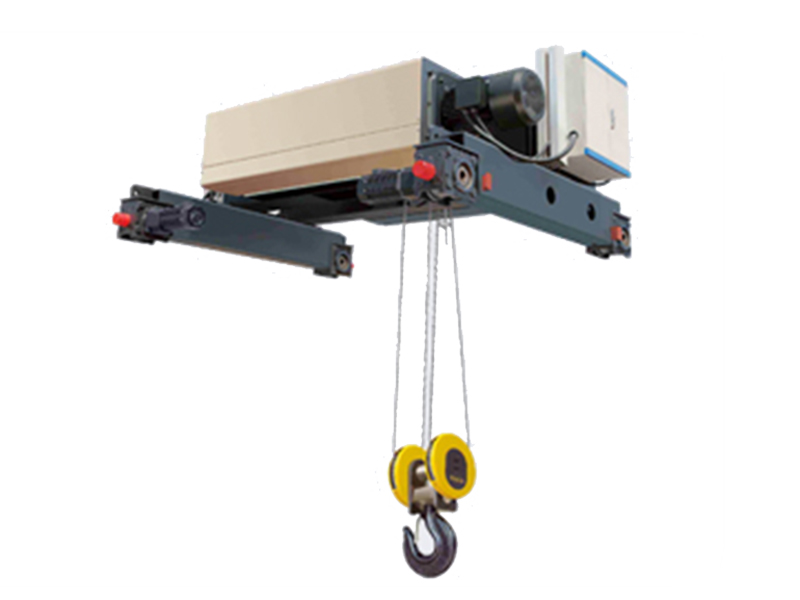

Europe Hoist

1.Pendent & remote control
2.Capacity:3.2-32t
3.Height: max 100m

Main Beam

1.With strong box type and standard camber
2.There will have reinforcement plate inside themain girder

Crane Hook

1.Pulley Diameter:125/0160/D209/0304
2.Material:Hook 35CrMo
3.Tonnage:3.2-32t

Application

IT IS USED IN MANY FIELDS

Can satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.

Production Workshop

Warehouse

Store Workshop

Plastic Mold Workshop

Product Details

Item	Unit	Result
Lifting capacity	ton	5-350
Lifting height	m	1-20
Span	m	10.5-31.5
Working environment temperature	°C	-25~40
Hoisting Speed	m/min	0.8-13
crab Speed	m/min	5.8-38.4
trolley Speed	m/min	17.7-78
Working system		A5-A6
Power source		three-Phase A C 50HZ 380V

HYCrane VS Others

Raw Material

Other brand:

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

Other brand:

1. Cut corners, such as: originally used 8mm steel plate, but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable, and safety risks are high.

Our brand:

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The motor's built-in anti-drop chain can prevent the motor's bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor, which increases the safety of the equipment.

Other brand:

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

Travelling Motor

Wheels

Our brand:

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

Other brand:

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

Our brand:

1. Adopting Japanese Yaskawa or German Schneider inverters not only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of the inverter allows the motor to self-adjust its power output according to the load of the hoisted object at any time, which not only increases the service life of the motor, but also saves the power consumption of the equipment, thereby saving the factory Cost of electricity.

Other brand:

1.The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.
