Xinxiang HY Crane Co., Ltd.
about_banner

Products

electric chain hoist 1ton low price with hook

Short Description:

Applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required

  • The Capacity: 1-16t
  • Lifting height: 6-30m
  • Voltage: 380V/48V AC
  • Product Detail

    Product Tags

    Product description

    banner-electric-chain-hoist-aa01

    1) Cheap electric hoist isCompact and high efficient motor, low power consumption
    2) Hoist body pressing steel structure, high strength body, light and compact
    3) cheap electric hoist Most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment; It guarantees the hook will not break and deform gradually under a sudden extra-load
    4)cheap electric hoist is Compact and beauty chain container: High strength plastic container has outstanding durability
    5) Limit switch devices fitted at both top and bottom ends: Switch off power automatically to prevent load chain from running out
    6) Low Headroom Electric Chain Hoist has widely used in mining and manufacturing enterprises,stores and warehouses ,medicine and healthy services,and catering trade,It can be fixed on a steel beam, curved track and fixed point for carrying anything heavy,and also on cantilever crane guide for carrying workpiece and machine tools. With the advantages of re lianle property,easy for operation,small size,light weight and good character isrics of common use, the block is good for the improvement of labor conditions and producivity.

    Model
    HHBB01
    HHBB03
    HHBB05
    HHBB10
    HHBB15
    Capacity(t)
    1
    3
    5
    10
    15
    Lifting Speed(m/min)
    6.6
    5.4
    2.7
    2.7
    1.8
    Motor power(kw)
    1.5
    3
    3
    3.0*2
    3.0*2
    Rotation speed(r/min)
    1440
    1440
    1440
    1440
    1440
    Insulation grade
    F
    F
    F
    F
    F
    Travelling speed(m/min)
    11/21
    11/21
    11/21
    11/21
    11/21
    Power supply
    3P-380V-50HZ
    3P-380V-50HZ
    3P-380V-50HZ
    3P-380V-50HZ
    3P-380V-50HZ
    Control voltage
    24V/36V/48V
    24V/36V/48V
    24V/36V/48V
    24V/36V/48V
    24V/36V/48V
    Load Chain Falls
    1
    1
    2
    4
    6
    Chain Specification
    Ø7.1
    Ø11.2
    Ø11.2
    Ø11.2
    Ø11.2
    I-Beam(mm)
    58-153
    100-178
    100-178
    150-220
    150-220

    Product Details

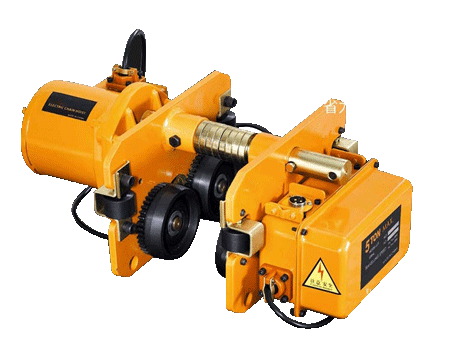

    Electric Hoist Trolley

    Electric Hoist Trolley

    Equipped with electric hoist, it can form a bridge-type single-beam and cantilever crane, which is more labor-saving and convenient.

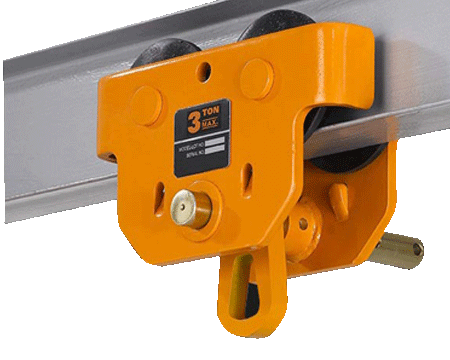

    Manual Hoist Trolley

    Manual Hoist Trolley

    The roller shaft is equipped with roller bearings, which has high walking efficiency and small pushing and pulling forces

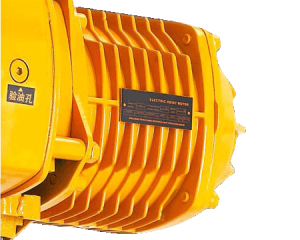

    Motor

    Motor

    Using pure copper motor, it has high power, fast heat dissipation and longer service life

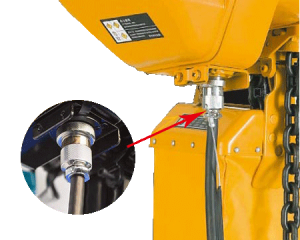

    Aviation plug

    Aviation plug

    Military quality, meticulous workmanship

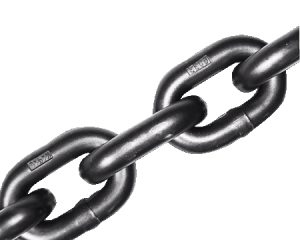

    Chain

    Chain

    Super heat-treated manganese steel chain

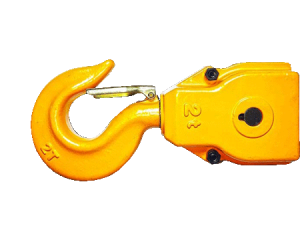

    Hook

    Hook

    Manganese steel hook, hot forged, not easy to break
