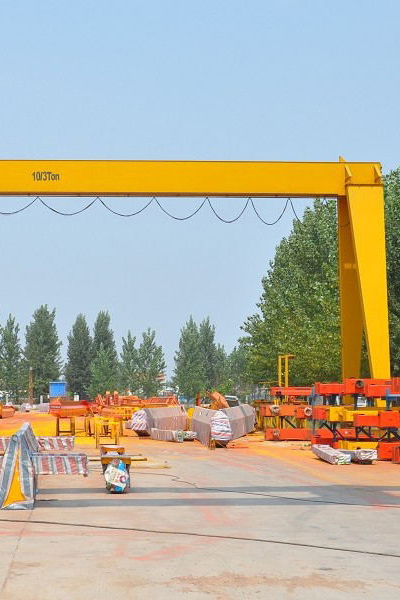

China top sale semi gantry crane

Short Description:

Semi-gantry crane is a regular crane widely used at open ground and warehouses to load and unload.


  • The capacity: 2-10ton
  • The span: 10-20m
  • The working grade: A5
  • Product Detail

    Product Tags

    Description

    banner

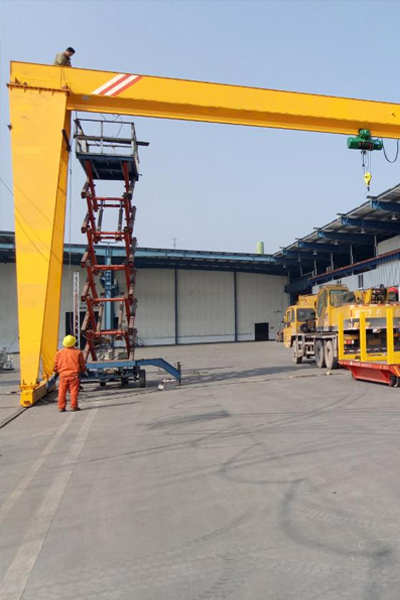

    BMH model Half gantry crane is consisted with gantry frame, main girder, legs (two sets), slide sill, lifting mechanism, travelling mechanism, and electric box. Widely used in workshop, storage, port and hydroelectric power station and some other outdoor place. This type of crane is equipped with has CD1, type and MD1 type hoist and is in medium and light duty. Lift capacity is from 2 ton to 30 ton and span is from 3 m to 35 m, or on request, the work temperature is within -20°C and +40°C, and has ground control type and operator cabin type.

    This kind of crane is a general using crane widely used at open ground and workshop to load, unload material. It is coalition of overhead crane and gantry crane, half of gantry crane design, travelling on the ground, and half of overhead crane design, travelling on the bearing beam of building, it is widely used at side of workshop to get more widely working space, or used inside workshop work together with overhead crane to get highly working efficiency.

    Electric hoist semi-gantry crane is used together with CD MD model electric hoist. It is track travelling small and medium sized crane. Its proper lifting capacity is 2 to 10 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.

    The capacity:2-10ton
    The span : 10-20m
    The working grade : A5
    The working temperature:-20℃ to 40℃

    Product Details

    a1

    Low
    Noise

    a2

    Fine
    Workmanship

    a3

    Spot
    Wholesale

    a4

    Excellent
    Material

    a5

    Quality
    Assurance

    a6

    After-Sale
    Service

    2

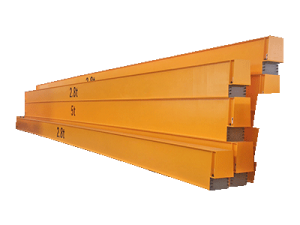

    Main beam

    1.With strong box type and standard camber
    2.There will have reinforcement plate inside themain girder
    sssssss

    1

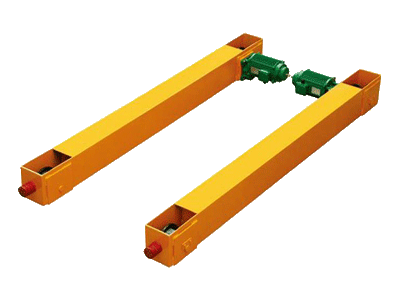

    End beam

    1.Uses rectangular tube manufacturing module
    2.Buffer motor drive
    3.With roller bearings and permanent iubncation

    3

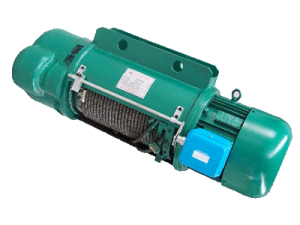

    Hoist

    1.Pendent & remote control
    2.Capacity:3.2-32t
    3.Height:max 100m
    s
    s

    4

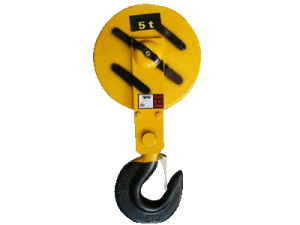

    Crane Hook

    1.Pulley Diameter:Ø125/Ø160/Ø209/Ø304
    2.Material:Hook 35CrMo
    3.Tonnage:3.2-32t

    Technical Parameters

    Item Unit Result
    Lifting capacity ton 2-10
    Lifting height m 6   9
    Span m 10-20
    Working environment  temperature °C -20~40
    Travelling speed m/min 20-40
    lifting speed m/min 8   0.8/8          7  0.7/7
    travelling speed m/min 20
    working system A5
    power source three-phase 380V 50HZ

    Application&Transport

    IT IS USED IN MANY FIELDS

    Can satisfy the users' choice under different condition.
    Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.

    1

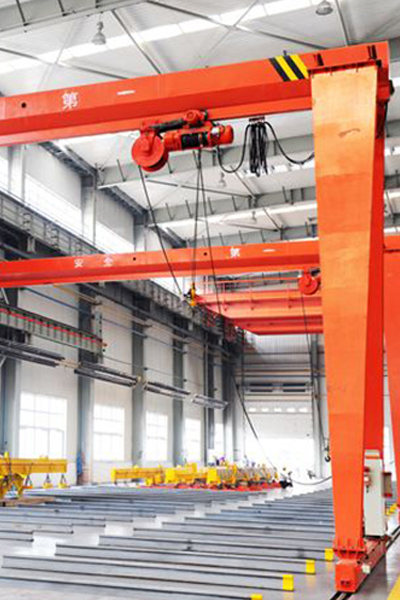

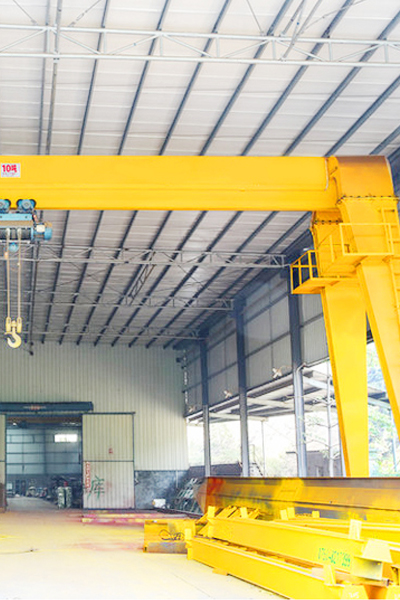

    Production Workshop

    2

    Warehouse

    3

    Store Workshop

    4

    Stockyard



    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    1
    2
    3
    4

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
