Cabin control railway mounted container travelling double girder gantry crane

Short Description:

Rail mounted container gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers.

The capacity: 30.5-320ton

The span: 35m

The working: A6

Send email to us

Product Detail

Product Tags

Description

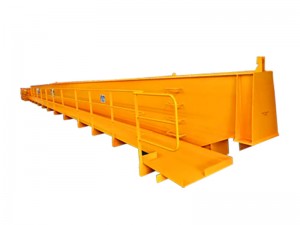

The gantry frame consists of the main beams, support legs, end carriages, driver's cabin and walkways. Compared with A-type crane, it doesn’t require any saddle frame to be built with the crane, which will effectively reduce the height of the entire machine given the same lifting height. Additionally, the U-type double girder gantry crane can be outreached at one side or both sides to form cantilevers, making it convenient to load and unload materials at the end of cantilever without affecting the normal operation within the span.

This type crane is suitable for railway freight yard, port, open warehouse and container transfer station with large span and frequent loading and unloading operations. This machine adopts U-shaped door frame, its leg clearance is large (nearly 7m), suitable for heavy cargo and container loading and unloading operations.

Main Features of Rail mounted Gantry Crane

1.Heavy Duty and High Efficient;
2. Suitable for outdoor work, all-weather working condition;
3. Long Life Span: 30-50years;
4. Motor insulation: F class;
5. Could be equipped with a spreader for lifting container.

6. Crane is equipped with all moving limit switches, loading limits and other standard safety devices, to promise crane work safe.

Item	Rail mounted Gantry Crane
Loading capacity	10~50/10t
Hoisting height	6~30m
Span	18~35m
Hoisting mechanism	Electric Winch trolley
Working Class	A5
Power supply	380V 50Hz 3Ph or custom made
