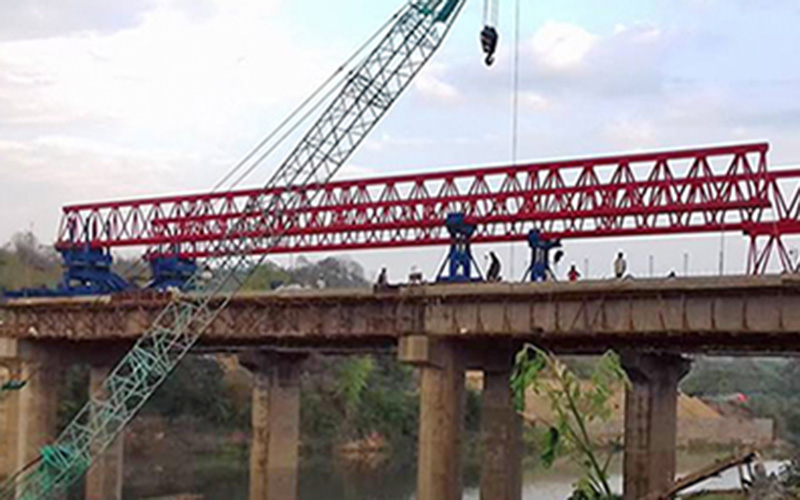

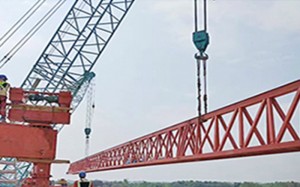

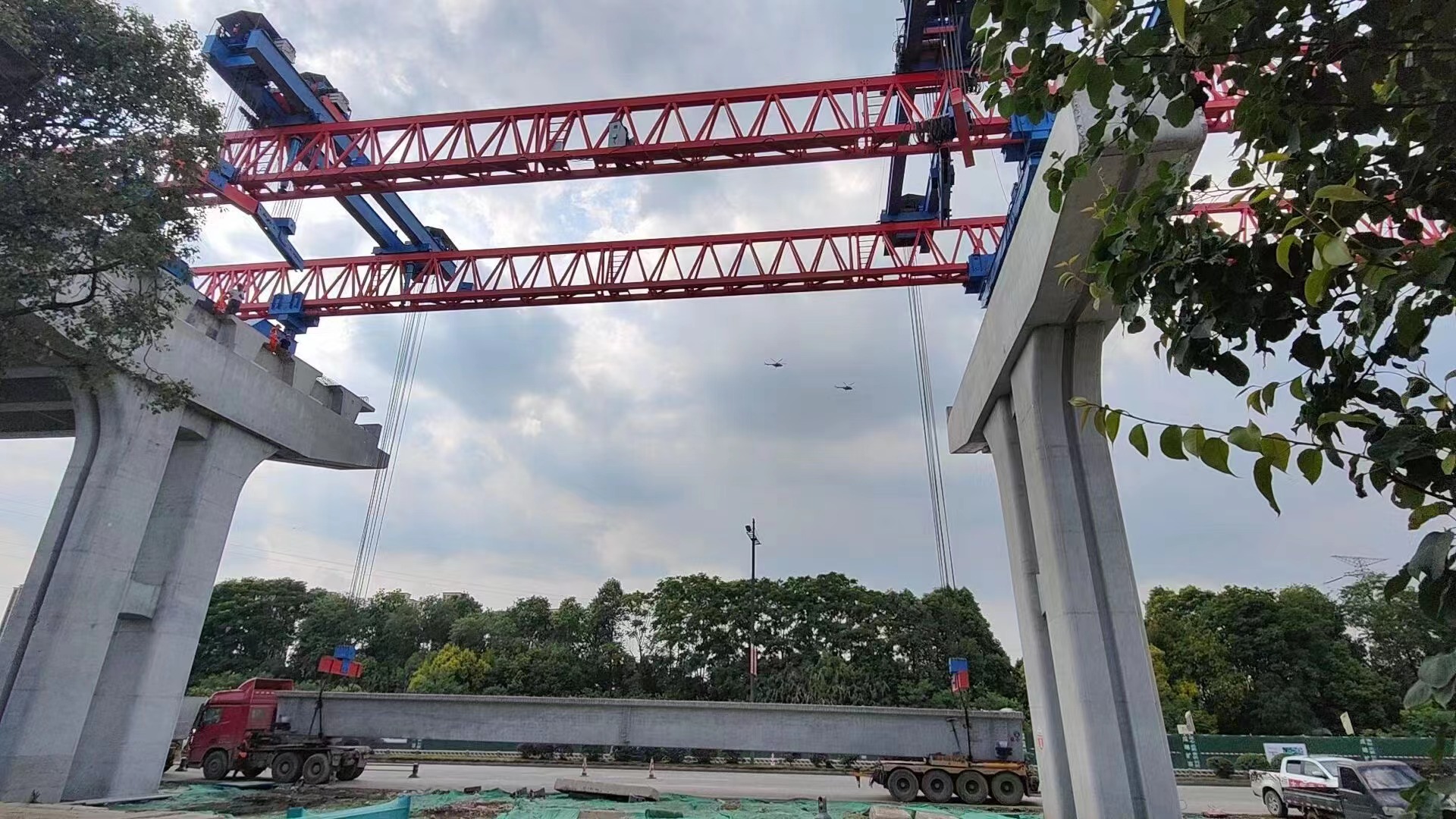

Beam Launcher Crane For Highway Construction
Description
Widely used launching erecting From China factory is bridge crane that places precast concrete beam into precast pier. And it consist of main girder,front leg, middle leg, rear leg, rear auxiliary leg, lifting trolley, hydraulic system and electrical device.
Double girder truss type launcher girder crane is suitable for highway and railway bridge, such as straight bridge, skew bridge, curved bridge and so on.
Beam launcher is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like U-beam, T-beam, I-beam, etc. This mainly consists of main beam, cantilever beam, under guide beam, front and rear support legs, auxiliary outrigger, hanging beam crane, jib crane and electro-hydraulic system. Beam launcher is widely used for plain construction, can also meet the requirement for mountain building highway slope, small radius curved bridge, skew bridge and tunnel bridge.
|
50m |
40m |
30m |
|||||
|
Type |
QJ200/50 | QJ180/50 | QJ160/50 | QJ140/40 | QJ120/40 | QJ100/30 | QJ80/30 |
|
Rated capacity |
200t | 180t | 160t | 140t | 120t | 100t | 60t |
|
Bridge span |
30-50m |
20-40m |
20-30m |
||||
|
Max. slope |
Longitudinal slope <5% cross slope <5% |
||||||
|
Lifting speed |
0.41m/min | 0.45m/min | 0.5m/min | 0.56m/min | 0.65m/min | 0.75m/min | 0.9m/min |
|
Trolley longitudinal speed |
3m/min |
||||||
|
Trolley cross speed |
3m/min |
||||||
|
Crane slide longitudinal speed |
3m/min |
||||||
|
Crane side cross travel speed |
3m/min |
||||||
|
Adaptive inclined bridge angle |
0~45° |
||||||
|
Adaptive curved bridge radius |
400m |
300m |
200m |
||||
Fine Workmanship
Low
Noise
Fine
Workmanship
Spot
Wholesale
Excellent
Material
Quality
Assurance
After-Sale
Service

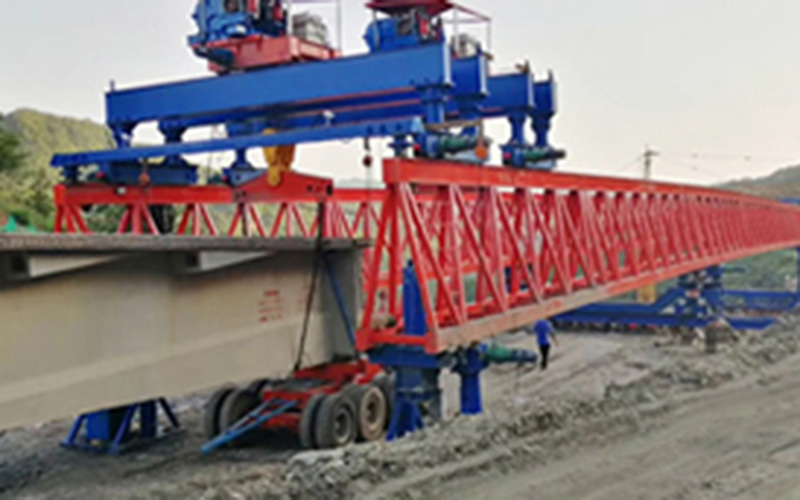

HY Crane designed one 120 ton, 55 meters spanbridge launcher in the Philippines, 2020.
Straight Bridge
Capacity: 50-250ton
Span: 30-60m
Lifting Height: 5.5-11m

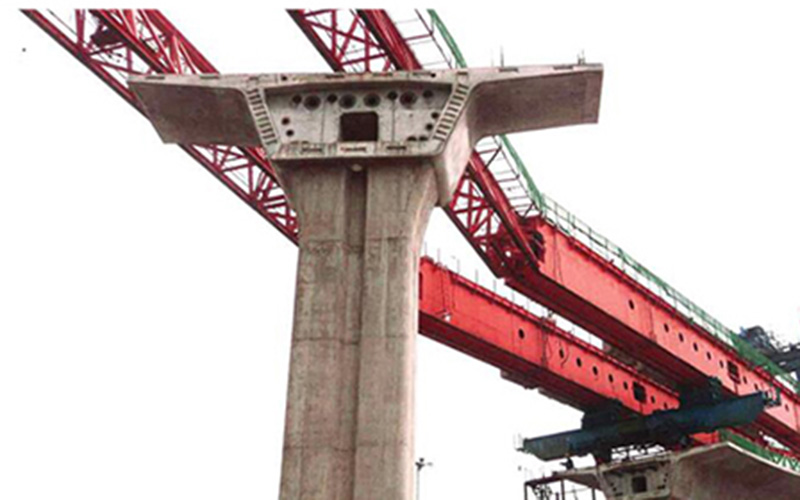

In 2018, we provided one 180 ton capacity, 40meters span bridge launcher for lndonesia client.
Skewed Bridge
Capacity: 50-250 Ton
Span: 30-60M
Lifting Height: 5.5M-11m

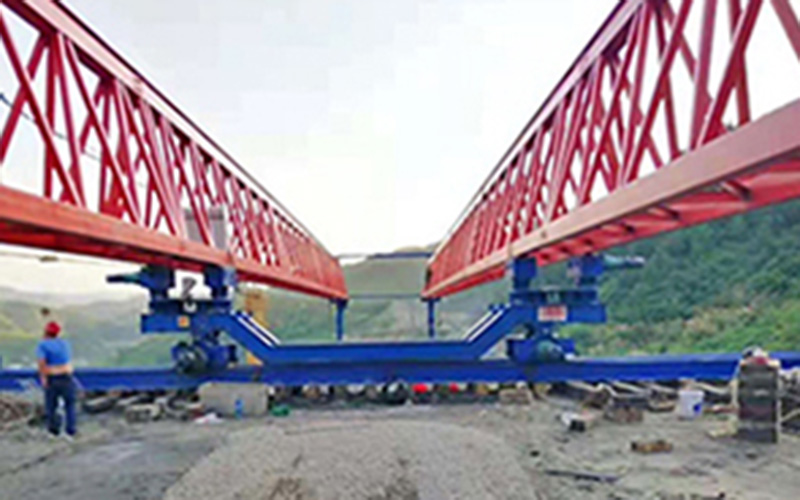

This project was a 180 ton, 53 meters spanbeam launcher in Bangladesh, 2021.
Cross The River Bridge
Capacity: 50-250 Ton
Span: 30-60M
Lifting Height: 5.5M-11m

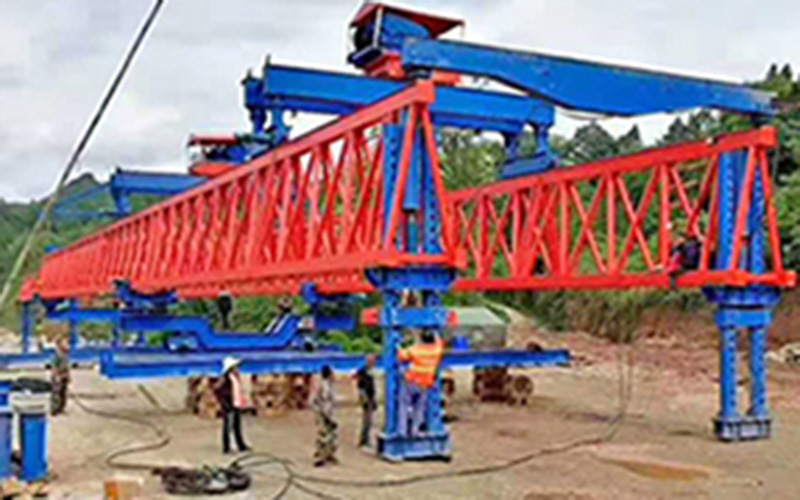

applied in mountain road，100 ton, 40 meters beamlauncher in Algeria, 2022.
Mountain Road Bridge
Capacity: 50-250 Ton
Span: 30-6OM
Lifting Height: 5.5M-11m
Application&Transport
IT IS USED IN MANY FIELDS
Satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.
Highway
Railway
Bridge
Highway
PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
RESEARCH ANDDEVELOPMENT
Professional power.
BRAND
Strength ofthe factory.
PRODUCTION
Years ofexperience.
CUSTOM
Spot isenough.
Asia
10-15days
Middle East
15-25days
Africa
30-40days
Europe
30-40days
America
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
