10 ton European design double girder overhead traveling crane for sale

Short Description:

European double girder cranes have the advantages of decreasing customer investment, making full use of on-site space, improving production power, good combination, safety and reliability, and low failure rate.

Lifting capacity: 5-50ton

Span length: 10.5-31.5m

Lifting height: 6-12mtrs

Send email to us

Product Detail

Product Tags

Description

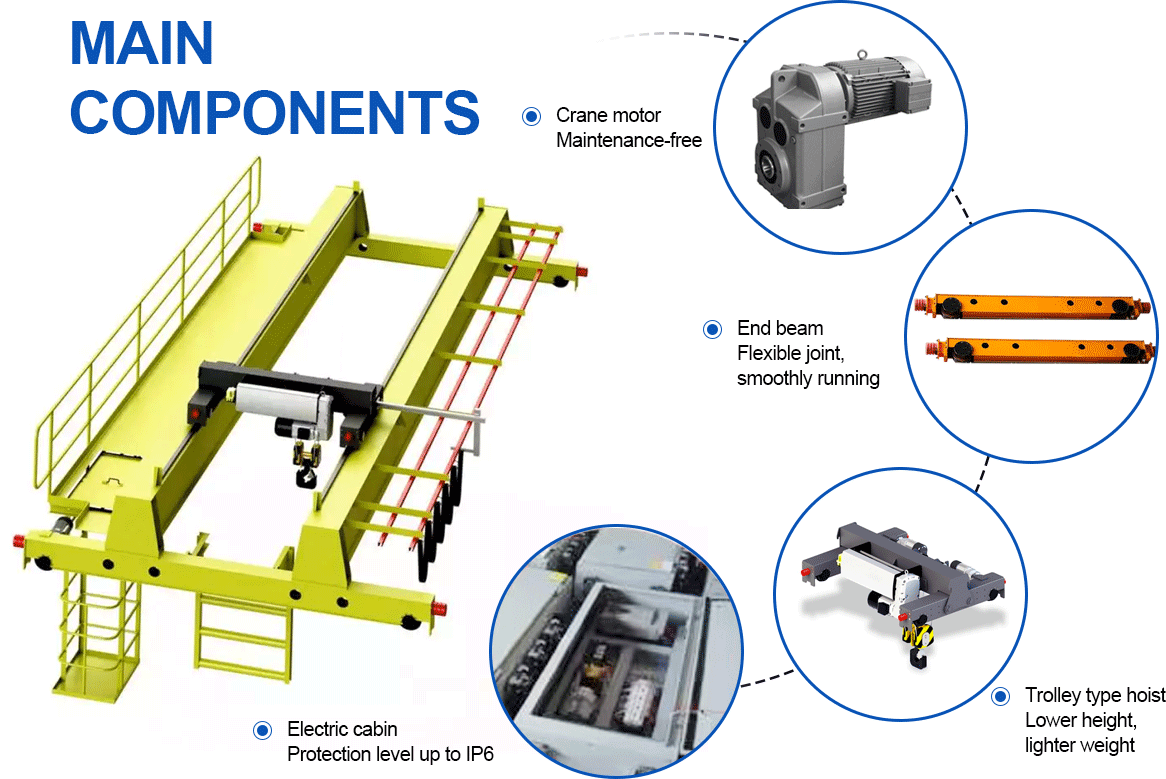

The mechanical system of the crane is mainly composed of main mechanical mechanisms such as trolleys and long traveling mechanism.

The components used in the mechanical system of the crane, such as gear boxes, brakes, couplings, reels, wheels, pulleys, hooks, bearings, etc. The crane specifications and corresponding standards are designed and manufactured to fully comply with EU standards. The overall hoist, end beam, electric control box, and cable drive are all imported from Europe.

The crane adopts advanced compact design scheme, small self-weight, low height, reasonable configuration, high transmission efficiency, low energy consumption, modular manufacturing process, high maintenance-free rate and less wearing parts.

Driver characteristics

1.Operation of large crane adopts traid frequency conversion driver,thus its operation is smooth and stable.

2.All aluminum housing of driver is small in volume, light in weight, and with good heat radiation performance.

3.Modularized design, direct driver installation, compact structure and high accuracy.

4.Unique electromagnetic design thus efficiently reduces electric current and extends service life.

5.Standard thermo sensitive switch, thus effectively uplifts safety grade.

6.Power input adopts heavy-load connector, thus the unloading is convenience and fast, safe and easy to operate.

Electric control system

1.Large crane electric control housing adopts standardized design, thus easy to replace and install.

2.Major electric element adopts international well-known brands such as Schneider and Simons etc.

3.Large crane limit standard equipment adopts Italian GG original importing brand, to ensure effectively safe operation and stop of crane.

4.Power supply of crane, big or small, adopts parallel installation of C type steel double track, enables little resistant and stable operation.

The characteristics of main frame of tail beam

1.The main body of tail beam adopts standard rectangular tube and numerical control automatic process.

2.Small space size stable structural properties, standardized connection with main beam, high interchangeability.

The characteristics of wheels

1.Its material selects to use high strength nodular cast iron, thus has good wearability and shock absorption capability.

2.Mondularized design, compact structure, high degree of standardization, easy to assembly parts.

3.DIN standard internal spline connection, automatic positioning, easy to install and dismantle.

Product Name		10 Ton European Design Double Girder Overhead Traveling Crane For Sale
Condition		New
Type		Double Girder Crane
Span		Up to 35m
Lifting Height		Up to 25m
Specification		CE, ISO
Control Method		Pendent Line Control， Radio Remote Control or Cabin Control
Workong Duty		A5-A8

Optional Lifters

C hook

Electromagnetic

Container car

HYCrane VS Others

Our Material

1. The raw material procurement process is strict and has been inspected by quality inspectors.
2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
3. Strictly code into inventory.

1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
2. As shown in the picture, old equipment is often used for refurbishment.
3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

Other Brands

Our Material

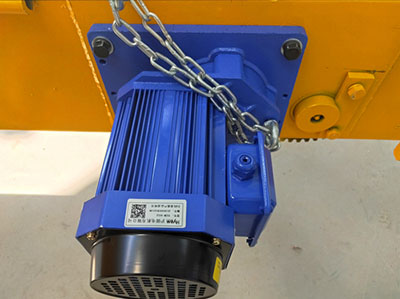

1. Motor reducer and brake are three-in-one structure
2. Low noise, stable operation and low maintenance cost.
3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

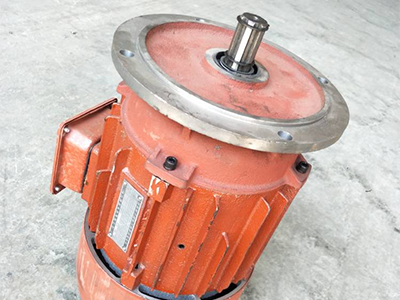

1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
2. The price is low and the quality is very poor.

a
S

Other Brands

Our Wheels

All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

1. Do not use splash fire modulation, easy to rust.
2. Poor bearing capacity and short service life.
3. Low price.

s
S

Other Brands

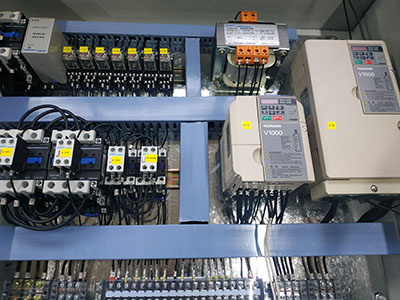

Our Controller

1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.

Other Brands

Application&Transport

IT IS USED IN MANY FIELDS

Satisfy the users' choice under different condition.
Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.
