Xinxiang HY Crane Co., Ltd.


Rubber Tyred Gantry Crane Price

Short Description:

  • The capacity: 30.5-350ton
  • The span: 18-50m
  • The working: A6
  • Product Detail

    Product Tags



    Tyre wheel gantry crane is a type of large dockside gantry crane found at container terminals for loading and unloading intermodal containers from container ship
    Tyre wheel gantry crane is specialized yard container handling machines. Its travels on rails to lift and stack 20, 40 and other containers on the yard area of the container terminal, The container is lifted by a spreader attached to cables. These cranes are specifically designed for intensive container stackong due to its automation and less need for human handing.
    Tyre wheel gantry crane has the advantage of being driven by electrical power, cleaner, bigger lifting capacity, and higher gantry travelling speed with cargo.
    The capacity:30.5-350ton
    The span : 18-50m
    The working grade: A6
    The working temperature:-20℃ to 40℃

    Our advantages:

    a. One-piece steel plate welded with another makes box-girder gantry crane very stable.
    b. High wind-resistance, high rigidity and low deflection make it very safe.
    c. Use winch to lift objects easily.
    d. Proven, professional technique and good performance make it famous all over the world.
    e. use high-quality electronic components which improve the efficiency and safety of the whole machine.
    f. The classical and traditional style has been widely accepted by all people.

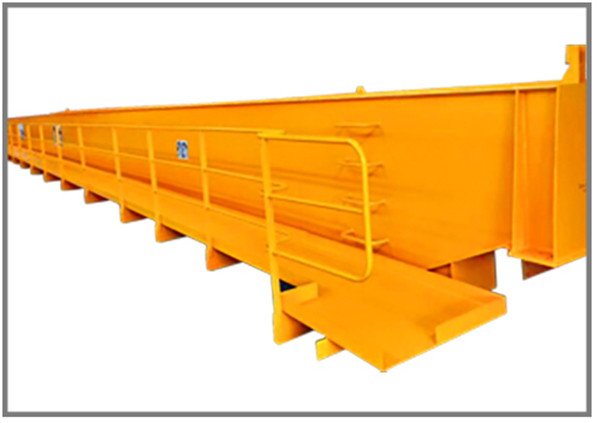

    Main Beam

    1.with strong box type and standardcamber
    2.There will have reinforcement plateinside the main girder

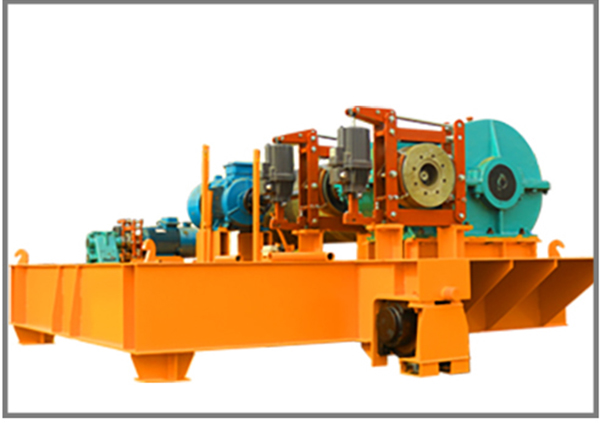

    Crane Trolley

    1.High working duty hoist mechanism.
    2.Working duty:A6-A8

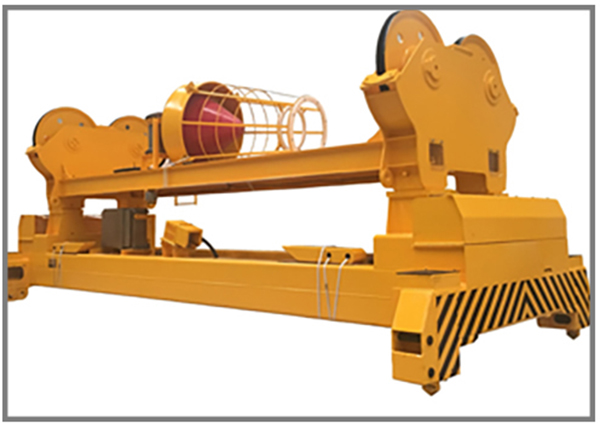

    Container Spreader

    Reasonable structure, goodversatility, strong carryingcapacity, and can be processed and customized

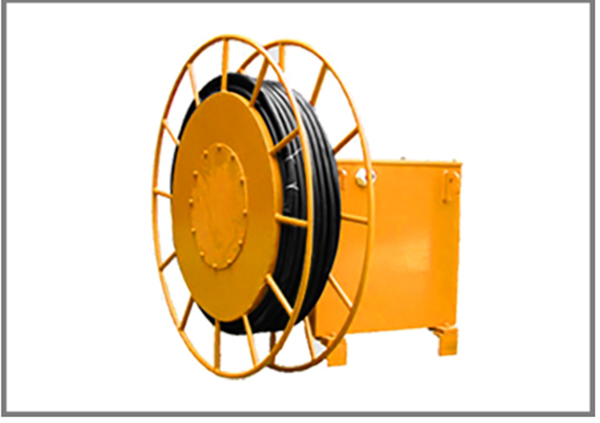

    Cable Drum

    1.The altitude does not exceed2000 meters.
    2.The protection class ofthe collector box is lP54.

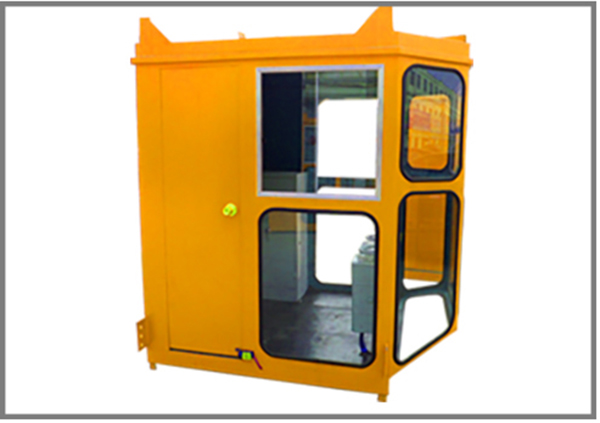

    Crane Cabin

    1.Close and open type.
    2.Air-conditioning provided.3.Interlocked circuit breakerprovided.

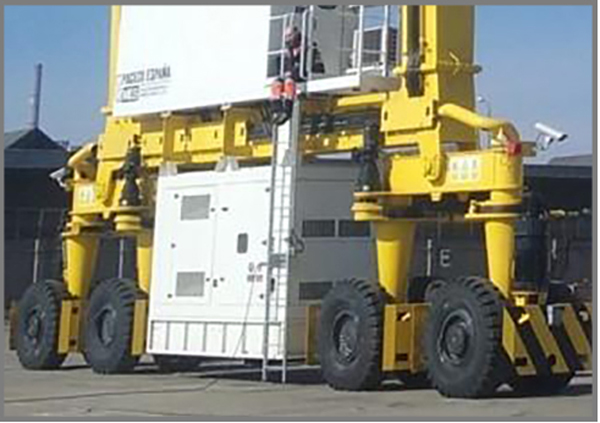

    Crane Travelling Machine

    1.Material: ZG55, ZG65, ZG50SiMn oron request
    2.wheel diameter: 250mm-800mm.

    Technical Parameters


    Technical Parameters

    Item Unit Result
    Lifting capacity ton 30.5-350
    Lifting height m 15-18
    Span m 18-50
    Working environment temperture °C -20~40
    Hoisting speed m/min 12-36
    Trolley speed m/min 60-70
    Working system A6
    Power source three-Phase A C 50HZ 380V
