marine travel lift for sale
Description

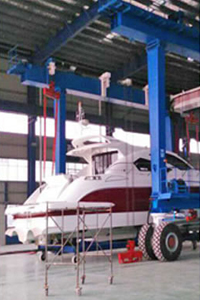

Travel Lift includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type ,it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-500T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface.
It also can put the boat in sequence quickly with small gap between each two boats.Electrical system uses PLC frequency adjustment which can easily control every mechanism.Control Methods: Cabin control / remote control or Cabin control + remote control.
Specifications :
1. Capacity: 100~900t
2. Ground specific pressure: 6.5~11.5kg/cm2
3. Grading ability: 2%~4%
4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min
5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min
6.Working ambient temperature: -20 ℃~+50 ℃

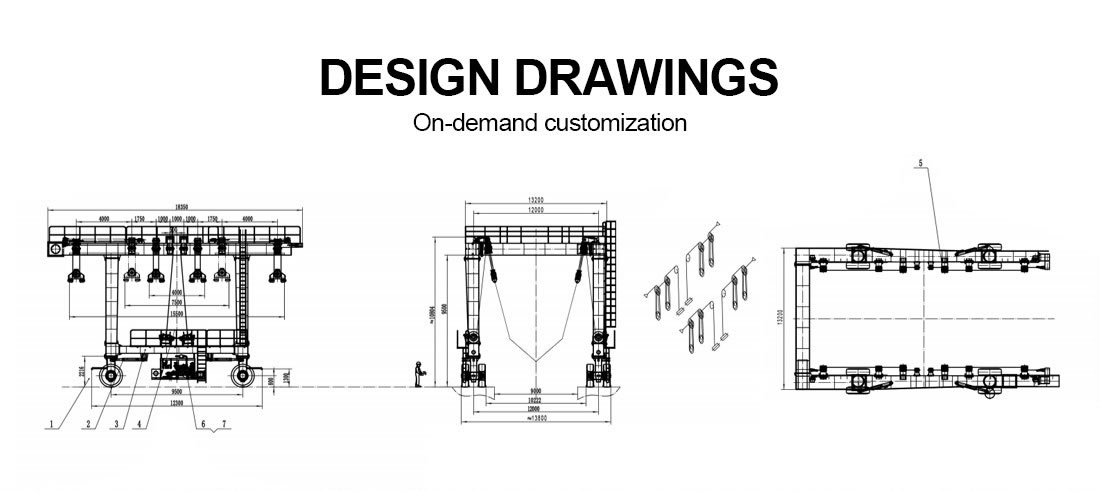

Product Drawing
Technical Parameters
|
Type
|
Safety working
load (N) |
Max working
Red (m) |
Min working
Red (m) |
Hoisting
Speed (m/min) |
Slewing
Speed (r/min) |
Luffing
Time (s) |
Hoisting
Height (m) |
Slewing
Angle |
|
|
Power
(kW) |
SQ1
|
10
|
6~12
|
1.3~2.6
|
15
|
1
|
60
|
30
|
|
|
2/5
|
7.5
|
SQ1.5
|
15
|
8~14
|
1.7~3
|
15
|
1
|
60
|
|
|
360
|
2/5
|
11
|
SQ2
|
20
|
5~15
|
1.1~3.2
|
15
|
1
|
|
|
30
|
360
|
2/5
|
15
|
SQ3
|
30
|
8~18
|
1.7~3.8
|
15
|
|
|
70
|
30
|
360
|
2/5
|
22
|
SQ5
|
50
|
12~20
|
2.5~4.2
|
|
|
0.75
|
80
|
30
|
360
|
2/5
|
37
|
SQ8
|
80
|
12~20
|
|
|
15
|
0.75
|
100
|
30
|
360
|
2/5
|
55
|
SQ10
|
100
|
|
|
2.5~4.2
|
15
|
0.75
|
110
|
30
|
360
|
2/5
|
75
|
SQ15
|
|
|
12~20
|
2.5~4.2
|
15
|
0.6
|
110
|
30
|
360
|
2/5
|
90
|
|
|
200
|
16~25
|
3.2~5.3
|
15
|
0.6
|
120
|
35
|
270
|
2/5
|
|
|
SQ25
|
250
|
20~30
|
3.2~6.3
|
15
|
0.5
|
130
|
40
|
270
|
|
|
90*2
|
SQ30
|
300
|
30
|
3.2~6.3
|
15
|
0.4
|
140
|
40
|
|
|
2/5
|
90*2
|
SQ35
|
350
|
20~35
|
4.2~7.4
|
15
|
0.5
|
150
|
|
|
360
|
2/5
|
110*2
|
SQ40
|
400
|
20~35
|
4.2~7.4
|
15
|
0.5
|
Why Choose Us
Complete
Models
Adequate
Nventory
Prompt
Delivery
Support
Customization
After-sales
Consultation
Attentive
Service

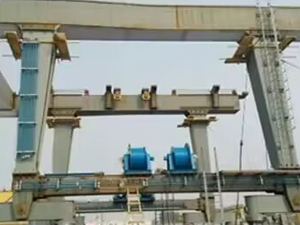

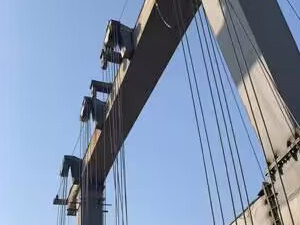

DOOR FRAME
The door frame have single
main type and double girder
type two kinds of for reasonable
use of material,the main variable
cress-section of the optimization

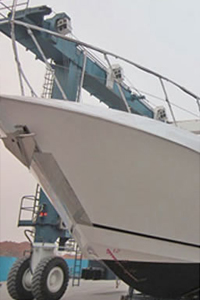

FIRM BELT
Low cost on the daily operation,
it adopts the soft and firm belt to
ensure there is no harm to the
boat when hoisting.
S

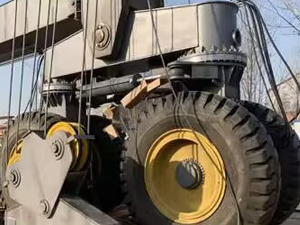

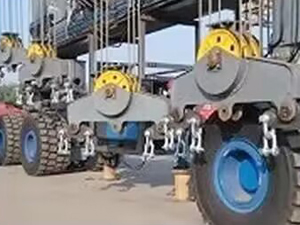

TRAVELING MECHANISM
It can realize12 walking funcyions
as straight line,transverse line,
in-place rotayion and Ackerman
turning ect.
S
CRANE CABIN
The high-strength frame is by
high-quality profile,and the high-
quality cold rolling plate is finished
by the CNC machine.
S

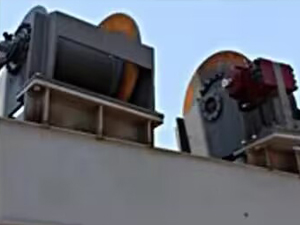

LIFTING MECHANISM
Lifting mechanism adopts the
load-sensitive hydraulic system,
the lifting point distance can be
adjusted to keep the simultaneous
lifting of multi-lift points and output.

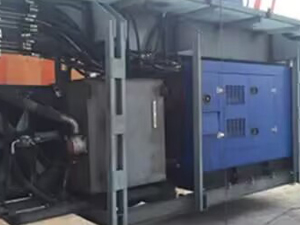

ELECTRIC SYSTEM
Electrical system uses PLC
frequency adjustment which can
easily control every mechanism.
S
S
Application&Transport
WIDE RANGE OF USE
A freight elevator that suits you
Shipyard
Outdoor repair shop

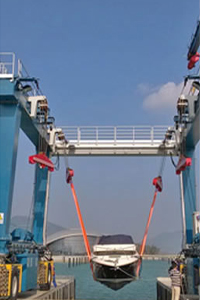

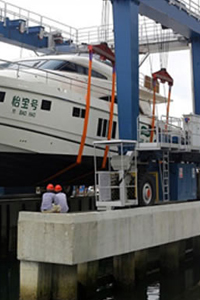

Yacht lifting
Storehouse

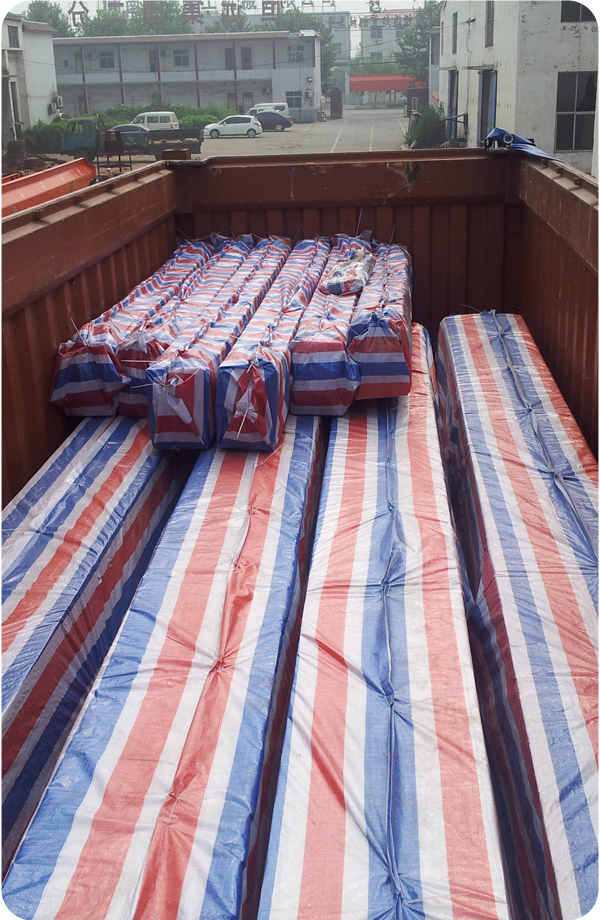

PACKING AND DELIVERY TIME
We have a complete production security system and experienced workers to ensure timely or early delivery.
RESEARCH ANDDEVELOPMENT
Professional power.
BRAND
Strength ofthe factory.
PRODUCTION
Years ofexperience.
CUSTOM
Spot isenough.
Asia
10-15days
Middle East
15-25days
Africa
30-40days
Europe
30-40days
America
30-35days
By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
